BrakesFront brake caliper components

FRONT BRAKE CALIPER COMPONENTS

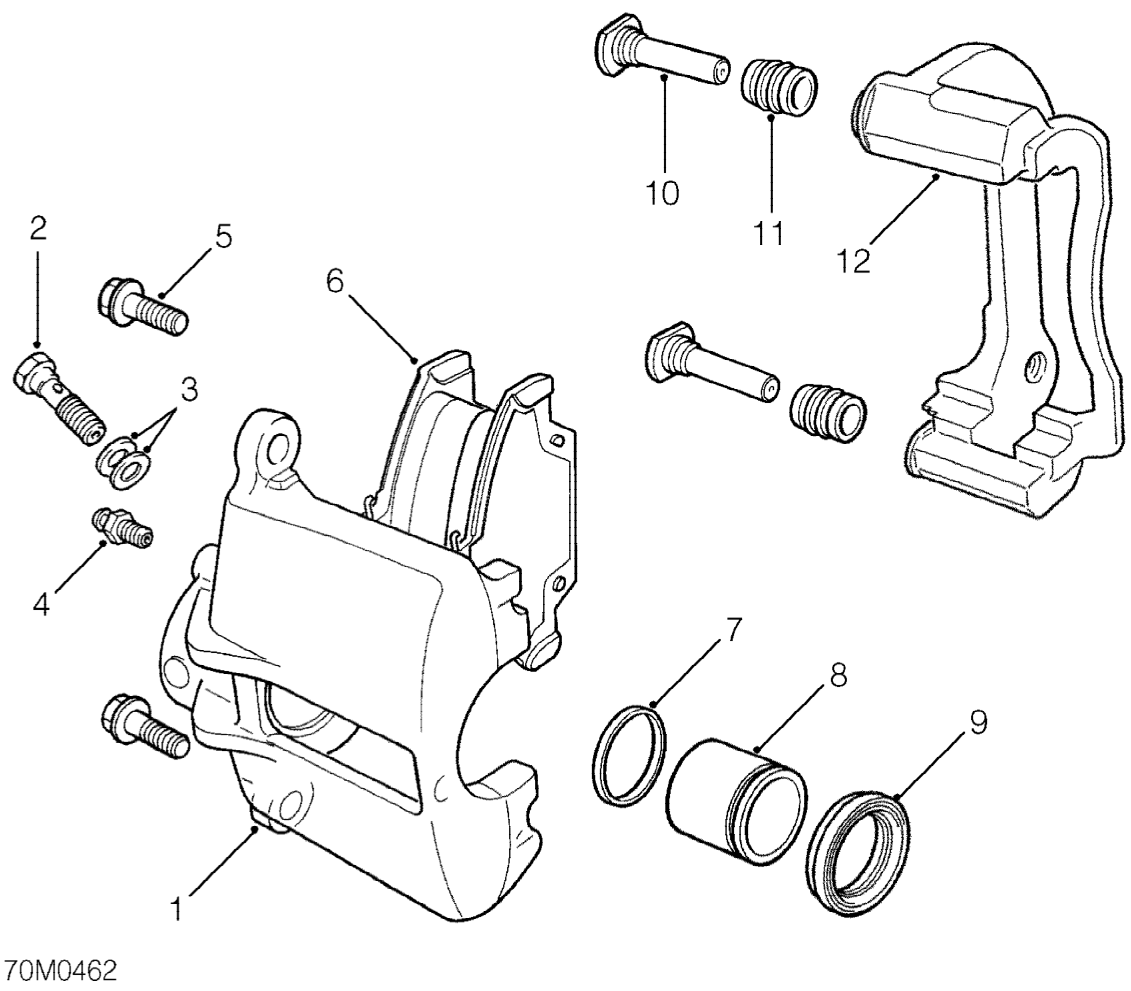

Front brake caliper components

Standard calipers shown, Sports version similar

  1. Caliper body
  2. Hose banjo bolt
  3. Hose banjo washer
  4. Bleed screw
  5. Guide pin bolt
  6. Brake pad
  7. Piston seal
  8. Piston
  9. Dust cover
  10. Guide pin
  11. Boot
  12. Caliper carrier
