BrakesRear brake caliper components

REAR BRAKE CALIPER COMPONENTS

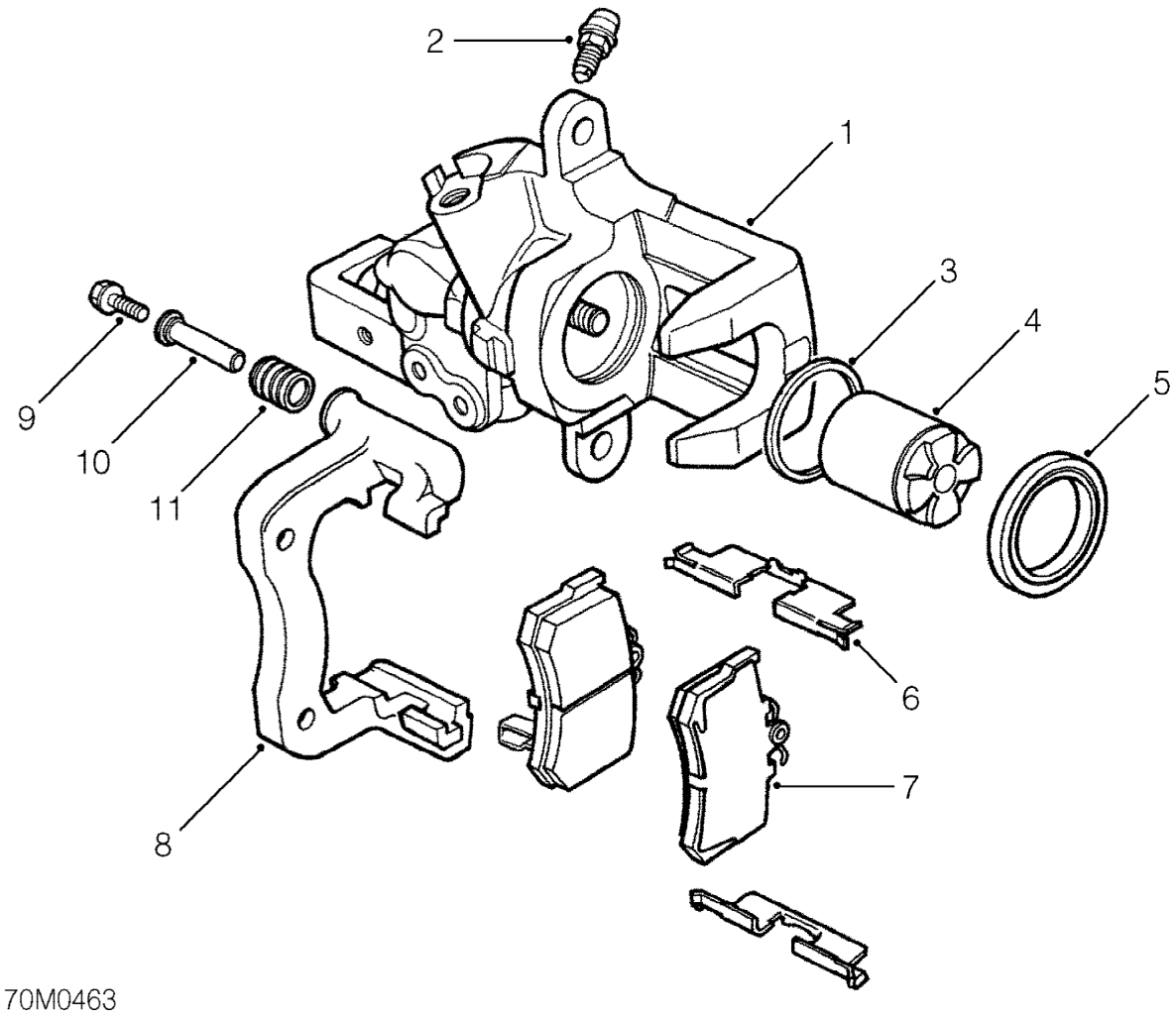

Rear brake caliper components
  1. Caliper body
  2. Bleed screw
  3. Piston seal
  4. Piston
  5. Dust cover
  6. Shim
  7. Brake pad
  8. Caliper carrier
  9. Guide pin bolt
  10. Guide pin
  11. Boot
