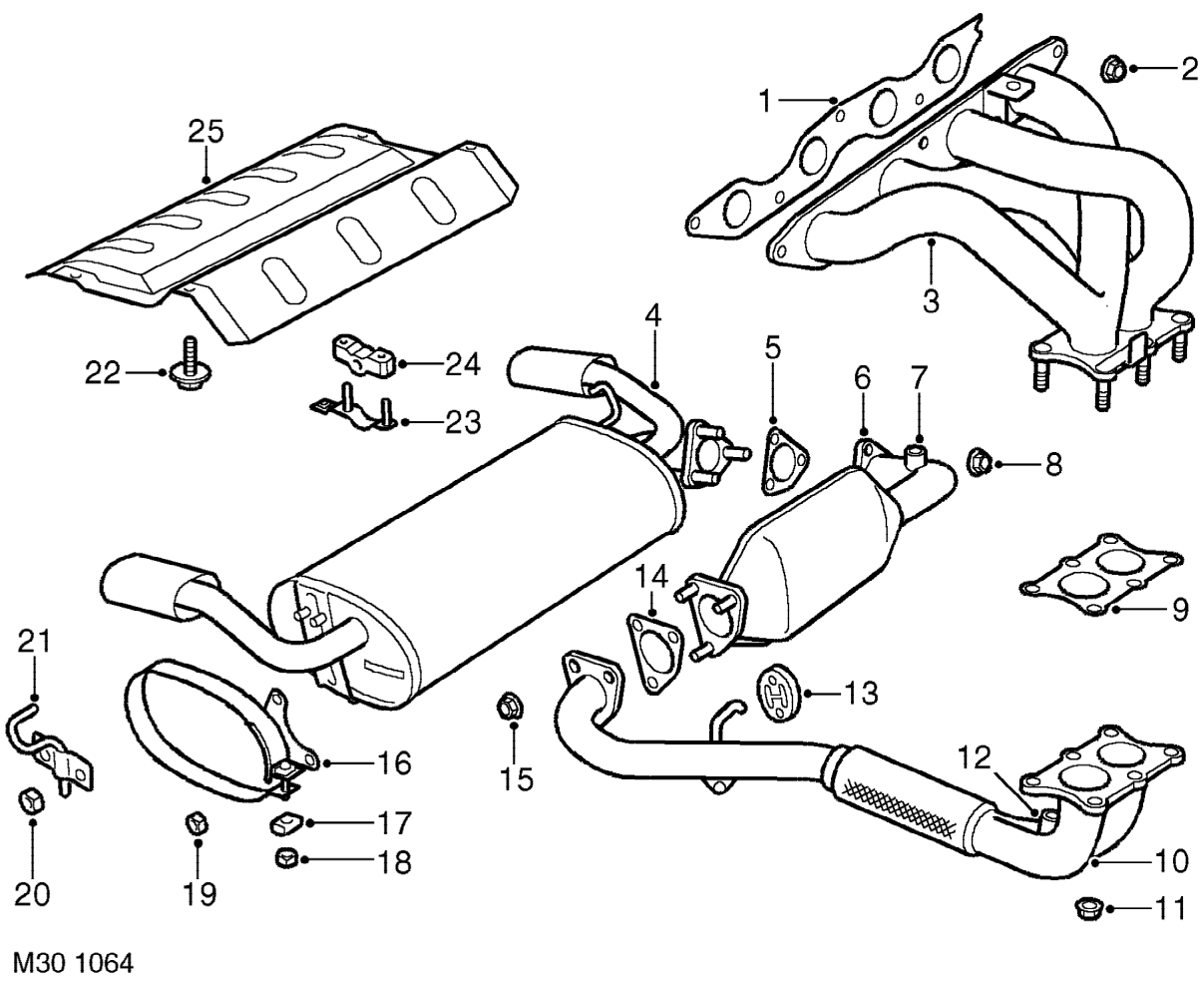

EXHAUST PIPE

Exhaust pipe
  1. Gasket - exhaust manifold
  2. Flange nut - exhaust manifold to cylinder head - 5 off
  3. Exhaust manifold
  4. Exhaust silencer
  5. Gasket - silencer to catalytic converter
  6. Catalytic converter
  7. Downstream HO2S mounting boss
  8. Flange nut - catalytic converter to silencer - 3 off
  9. Gasket - manifold to front pipe
  10. Exhaust front pipe
  11. Flange nut - manifold to front pipe - 6 off
  12. Upstream HO2S mounting boss
  13. Mounting rubber
  14. Gasket - catalytic converter to front pipe
  15. Flange nut - catalytic converter to front pipe - 3 off
  16. Clamp bracket - silencer
  17. Washer - clamp bracket
  18. Nut - clamp bracket
  19. Nut - clamp bracket attachment
  20. Nut - silencer mounting bracket - 2 off
  21. Mounting bracket - silencer
  22. Bolt - heat shield - 4 off
  23. Mounting bracket - 2 off
  24. Mounting rubber - 2 off
  25. Heat shield - silencer
