Restraint systems (SRS)Deployment of driver airbag module · page 2 of 2
Diagram

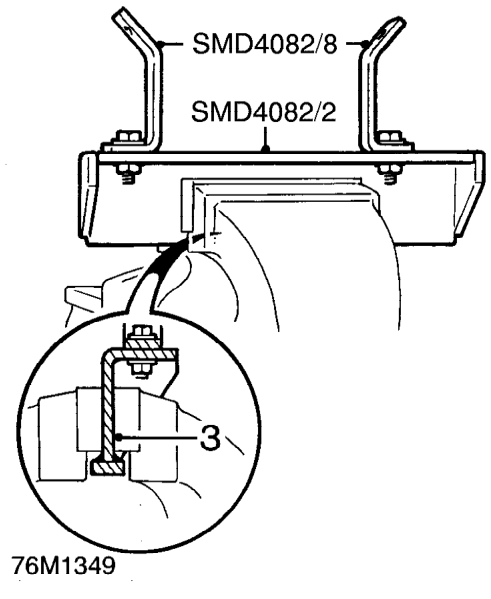

  1. Position tool SMD 4082/2 in a vice, ensuring that the vice jaws grip the tool above the bottom flange to prevent the possibility of the tool being forced upwards from the vice. Tighten the vice.
Position tool SMD 4082/2 in a vice, ensuring that the vice jaws grip the tool above the bo

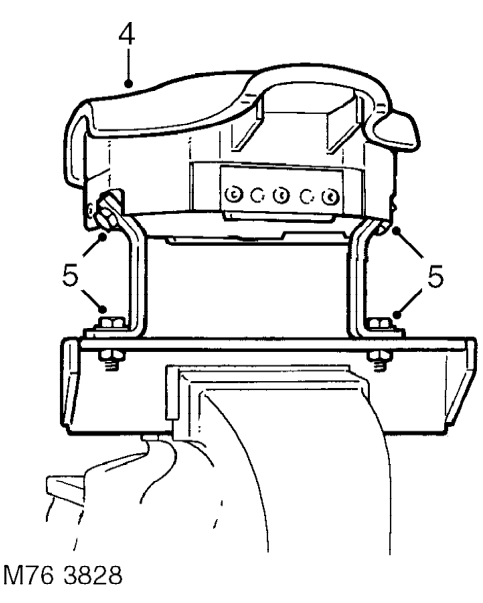

  1. Secure the airbag module to tool SMD 4082/2 using the appropriate mounting brackets (e.g. SMD 4082/8).
  2. Ensure the airbag module mounting brackets are secure.

WARNING: Ensure deployment tool SMD 4082/1 is not connected to the battery.

Ensure the airbag module mounting brackets are secure.

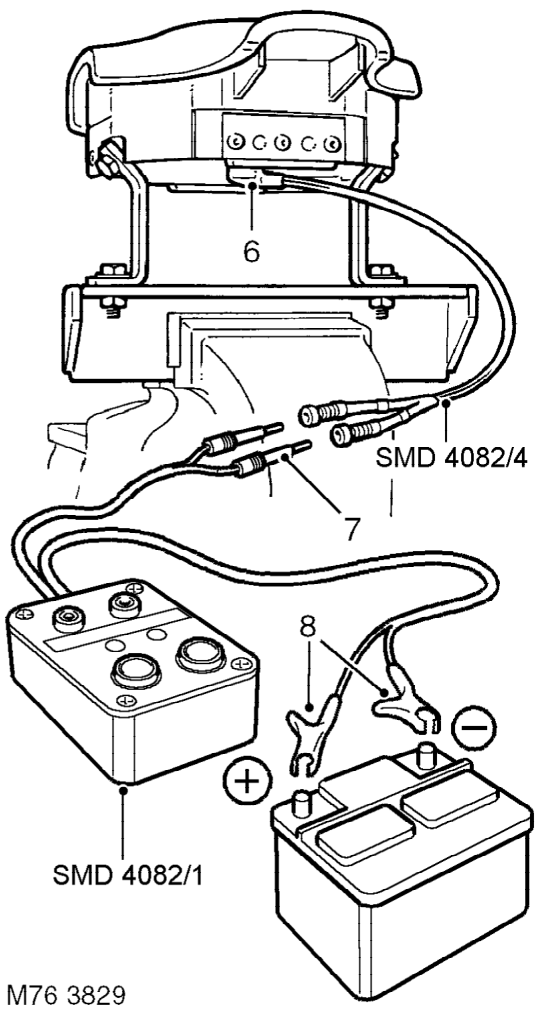

  1. Connect deployment tool flylead SMD 4082/4 to the driver airbag module.
  2. Connect deployment tool flylead SMD 4082/4 to deployment tool SMD 4082/1.

WARNING: Do not lean over the airbag module whilst connecting.

WARNING: Ensure all personnel are standing at least 15 metres (50 ft.) away from the airbag module.

  1. Connect deployment tool SMD 4082/1 to the battery.
