Deployment of driver airbag module (Restraint systems (SRS))

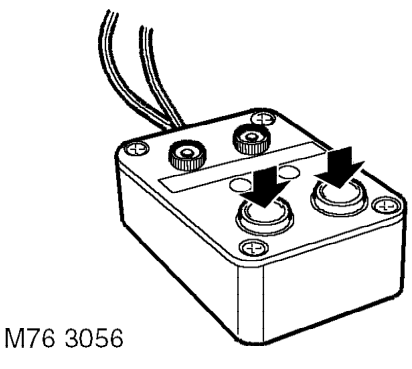

7. Press both operating buttons of deployment tool SMD 4082/1 to deploy the pre-tensioner.

WARNING: A deployed pre-tensioner gas generator will be very hot, DO NOT return to the pre-tensioner for 30 minutes.

CAUTION: Wear a face shield and gloves when handling a deployed pre-tensioner unit. Wash hands and rinse well after handling a deployed pre-tensioner unit.

8. Remove the front seat belt pre-tensioner assembly from the vehicle. See Repairs.
9. Wipe down the deployment tools with a damp cloth.
10. Place the pre-tensioner in a strong plastic bag and seal the bag.
11. Transport the deployed pre-tensioner to the designated area for incineration.

NOTE: DO NOT transport the deployed pre-tensioner unit in the vehicle passenger compartment.

12. Scrap all remaining parts of the seat belt and pre-tensioner assembly. DO NOT re-use or salvage any parts of the seat belt and pre-tensioner assembly.

Deployment of driver airbag module

These guidelines are written to aid authorised personnel to carry out the safe manual deployment and disposal of airbag modules when they are removed from the vehicle.

WARNING: Always read and adhere to the SRS deployment precautions outlined in this workshop manual. See GENERAL INFORMATION, SRS Precautions.

• Always remove the key from the ignition switch and disconnect the vehicle battery (negative lead first) before starting the deployment procedures.
• Always observe the system safe time of 10 minutes (to allow the energy reserve capacitors to discharge) before disconnecting or removing any SRS components.
• Only use the MG Rover approved deployment equipment.
• Deploy the airbag modules in a well ventilated, specially designated area.
• Ensure the airbag module is not damaged or ruptured before deploying.
• Notify the relevant authorities.

Deploy

1. Carry out deployment tool SMD 4082/1 self test.
2. Remove the airbag module from the steering wheel. See Repairs.
