Deployment of passenger airbag module (Restraint systems (SRS))

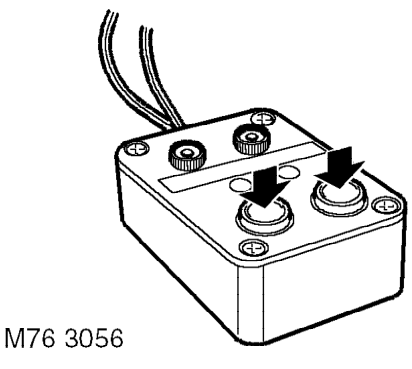

9. Press both operating buttons of deployment tool SMD 4082/1 to deploy the airbag module.

WARNING: A deployed airbag module will be very hot. DO NOT return to the airbag module for 30 minutes.

CAUTION: Wear a face shield and gloves when handling a deployed airbag module. Wash hands and rinse well after handling a deployed airbag module.

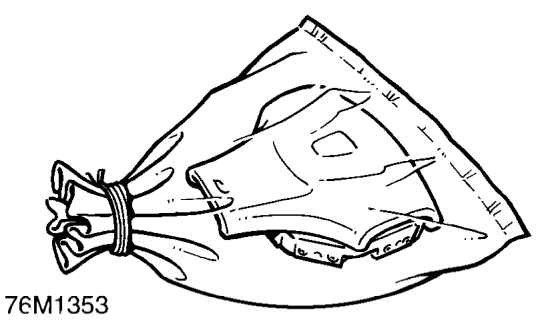

10. Remove the driver airbag module from the deployment tools and place the deployed airbag module in a strong plastic bag, and seal bag.
11. Wipe down the deployment tools with a damp cloth.
12. Transport the deployed driver airbag module to the designated area for incineration.

NOTE: DO NOT transport the airbag module in the vehicle passenger compartment.

13. Scrap all remaining parts of airbag system. DO NOT re-use or salvage any parts of the airbag system.

Deployment of passenger airbag module

These guidelines are written to aid authorised personnel to carry out the safe manual deployment and disposal of airbag modules when they are removed from the vehicle.

WARNING: Always read and adhere to the SRS deployment precautions outlined in this workshop manual. See GENERAL INFORMATION, SRS Precautions.

• Always remove the key from the ignition switch and disconnect the vehicle battery (negative lead first) before starting the deployment procedures.
• Always observe the system safe time of 10 minutes (to allow the energy reserve capacitors to discharge) before disconnecting or removing any SRS components.
• Only use the MG Rover approved deployment equipment.
• Deploy the airbag modules in a well ventilated, specially designated area.
• Ensure the airbag module is not damaged or ruptured before deploying.
• Notify the relevant authorities.

Deploy

1. Carry out deployment tool SMD 4082/1 self test.
2. Remove the passenger airbag module. See Repairs.
