Deployment of passenger airbag module (Restraint systems (SRS)) (page 3 of 3)

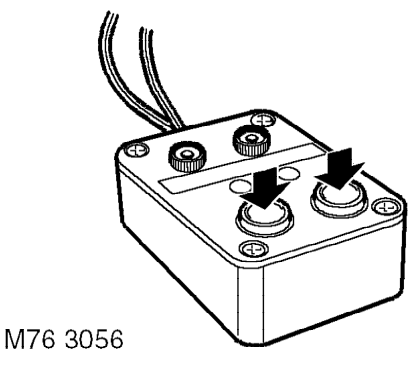

10. Press both operating buttons of deployment tool SMD 4082/1 to deploy the airbag module.

WARNING: A deployed airbag module will be very hot. DO NOT return to the airbag module for 30 minutes.

CAUTION: Wear a face shield and gloves when handling a deployed airbag module. Wash hands and rinse well after handling a deployed airbag module.

11. Disconnect the passenger airbag module from deployment tool SMD 4082/1 and remove the airbag module from the mounting brackets.
12. Wipe down the deployment tools with a damp cloth.

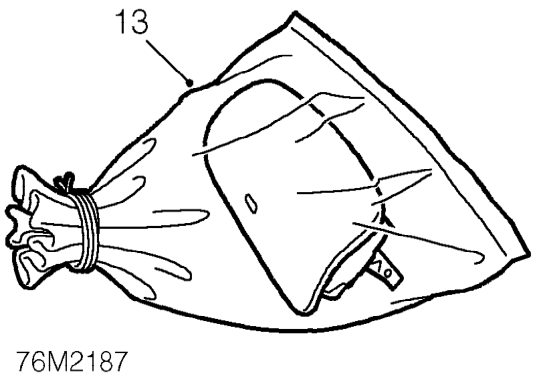

13. Place the deployed passenger airbag module in a strong plastic bag and seal the bag.
14. Transport the deployed airbag module to the designated area for incineration.

NOTE: DO NOT transport the airbag module in the vehicle passenger compartment.

15. Scrap all remaining parts of the airbag system. DO NOT re-use or salvage any parts of the airbag system.
