Restraint systems (SRS)Deployment of passenger airbag module · page 2 of 3

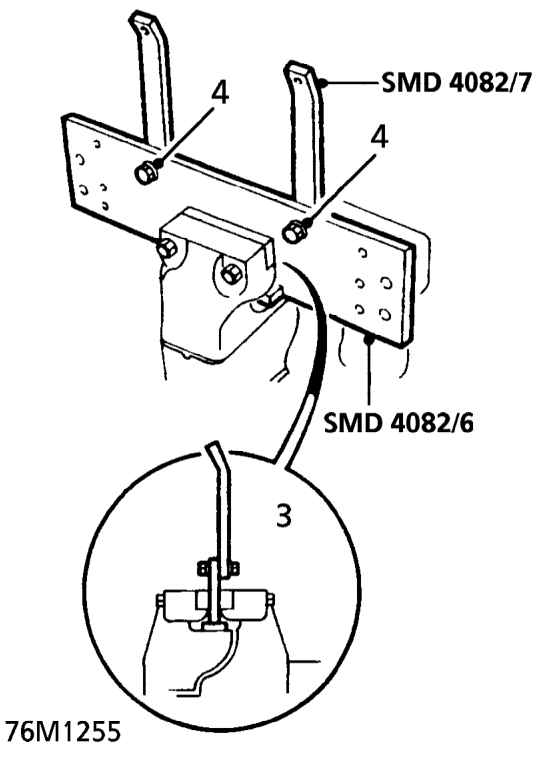

Diagram
  1. Position tool SMD 4082/6 in a vice, ensuring that the vice jaws grip the tool above the bottom flange to prevent the possibility of the tool being forced upwards from the vice. Tighten the vice.
  2. Position brackets SMD 4082/7 to tool SMD 4082/6 , lightly tighten the bolts.

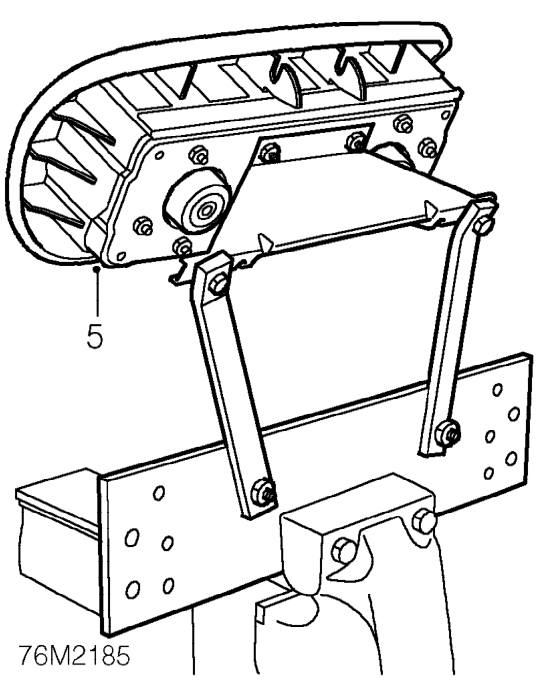

Position brackets SMD 4082/7 to tool SMD 4082/6 , lightly tighten the bolts.
  1. Position the airbag module to tool SMD 4082/6.
  2. Ensure all the airbag module and mounting bracket fixings are secure.

WARNING: Ensure tool SMD 4082/1 is not connected to the battery.

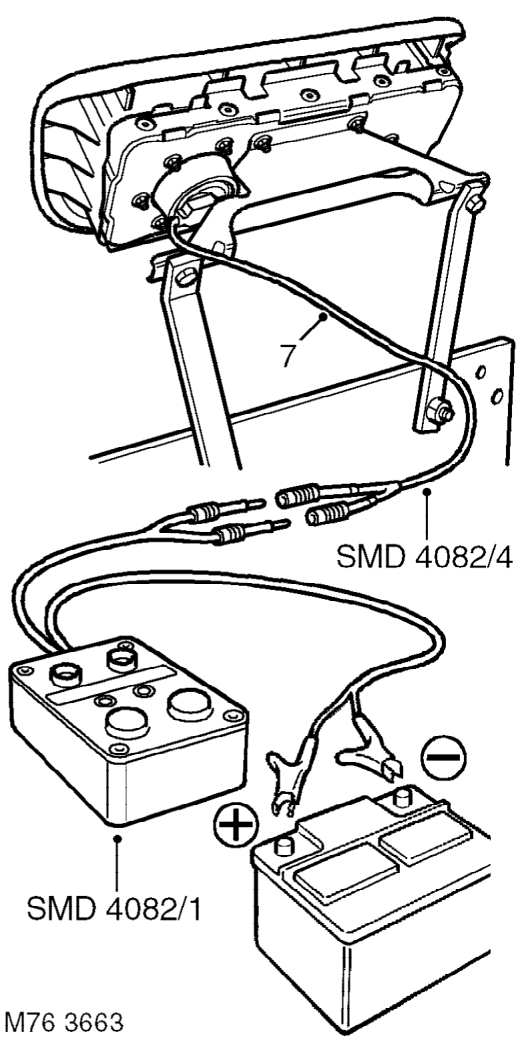

Ensure all the airbag module and mounting bracket fixings are secure.
  1. Connect deployment tool flylead SMD 4082/4 to the passenger airbag module.
  2. Connect deployment tool flylead SMD 4082/4 to the deployment tool SMD 4082/1.

WARNING: Do not lean over the airbag module whilst connecting.

WARNING: Ensure all personnel are standing at least 15 metres (50 ft.) away from the airbag module.

  1. Connect deployment tool SMD 4082/1 to the battery.
