DRIVER AIRBAG MODULE

Service repair no - 76.74.71

WARNING: See GENERAL INFORMATION, SRS Precautions.

Remove

  1. Make the SRS system safe. See GENERAL INFORMATION, SRS Precautions.

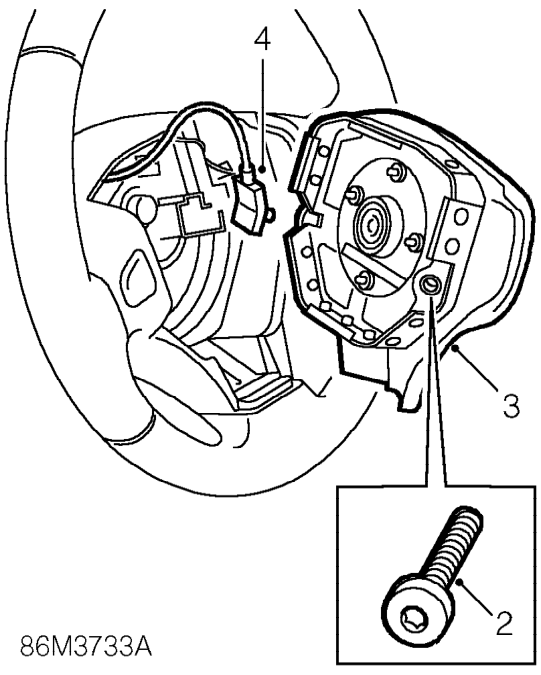

Driver airbag module – Make the SRS system safe. See GENERAL INFORMATION, SRS Precautions.
  1. Remove 2 Tx30 Torx screws securing module to steering wheel.
  2. Release air bag module from steering wheel.

CAUTION: Do not allow the air bag module to hang by the air bag harness.

  1. Disconnect multiplug from air bag module.
  2. Remove air bag module.

CAUTION: Store the air bag module in accordance with the storage procedures outlined in the precautions part of this manual. See GENERAL INFORMATION, SRS Precautions.

NOTE: If the air bag module is to be replaced, the bar code must be recorded.

Refit

  1. Position module to steering wheel and connect harness multiplug.
  2. Align module to steering wheel, fit Torx screws and tighten to 8 Nm
  3. Carry out system check using TestBook.
