SEAT BELT PRE-TENSIONER

Service repair no - 76.73.75

WARNING: See GENERAL INFORMATION, SRS Precautions.

Remove

  1. Make the SRS system safe. See GENERAL INFORMATION, SRS Precautions.

CAUTION: Ensure pre-tensioner multiplug is disconnected before seat is removed.

  1. Remove seat. See BODY, Interior trim components.

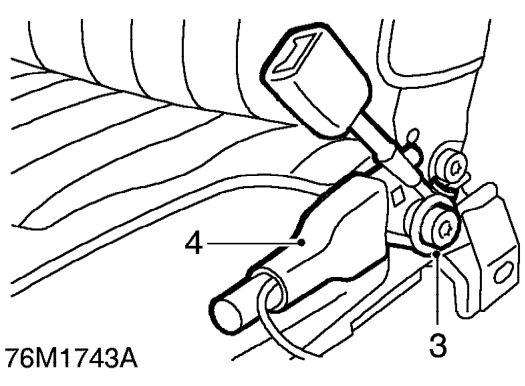

Seat belt pre-tensioner – Remove seat. See BODY, Interior trim components.
  1. Remove bolt securing pre-tensioner to seat.
  2. Remove pre-tensioner.

Refit

  1. Position pre-tensioner to seat and tighten bolt to 45 Nm.

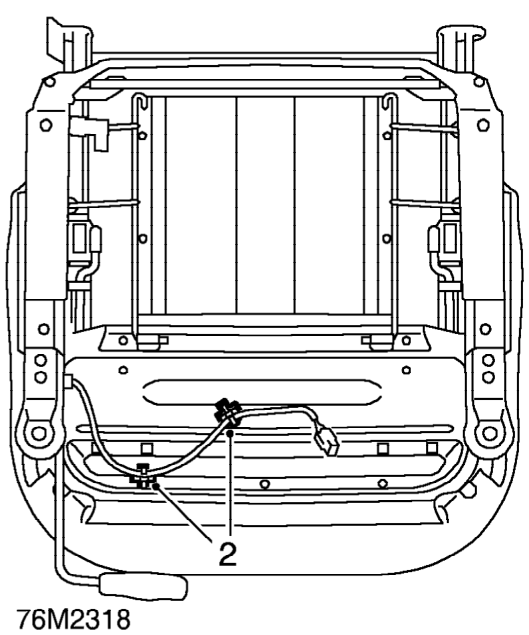

Seat belt pre-tensioner – Position pre-tensioner to seat and tighten bolt to 45 Nm.
  1. Ensure that pre-tensioner lead is correctly clipped to seat base.
  2. Fit seat. See BODY, Interior trim components.
  3. Carry out system check using TestBook.
