Restraint systems (SRS)Rotary coupler

ROTARY COUPLER

Service repair no - 86.65.85

WARNING: See GENERAL INFORMATION, SRS Precautions.

Remove

  1. Make the SRS system safe. See GENERAL INFORMATION, SRS Precautions.
  2. Ensure wheels are in the straight ahead position.
  3. Remove steering wheel. See STEERING, Repairs.
  4. Remove steering column nacelle. See STEERING, Repairs.
  5. If the rotary coupler is being re-used, place adhesive tape around moulding to prevent rotation.

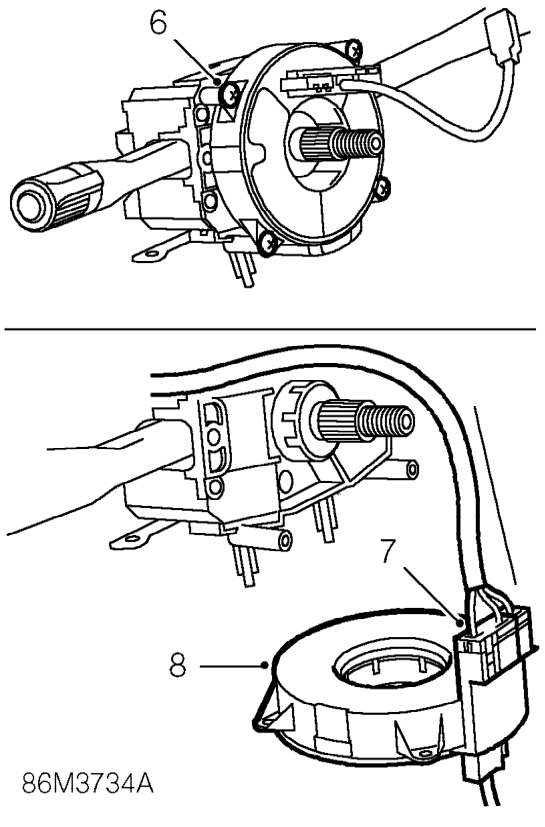

Rotary coupler – If the rotary coupler is being re-used, place adhesive tape around moulding to prevent rot
  1. Remove 4 screws securing rotary coupler to steering column switch pack.
  2. Release rotary coupler from column and disconnect 2 multiplugs.
  3. Remove rotary coupler.

CAUTION: Do not dismantle the rotary coupler. It has NO serviceable parts and must be replaced as a complete assembly.

Refit

  1. Position rotary coupler to switch pack.
  2. Connect multiplugs.
  3. Fit and tighten screws.
  4. Remove adhesive tape.
  5. Fit steering column nacelle. See STEERING, Repairs.
  6. Fit steering wheel. See STEERING, Repairs.
  7. Carry out system check using TestBook.
