SteeringEPAS system control diagram

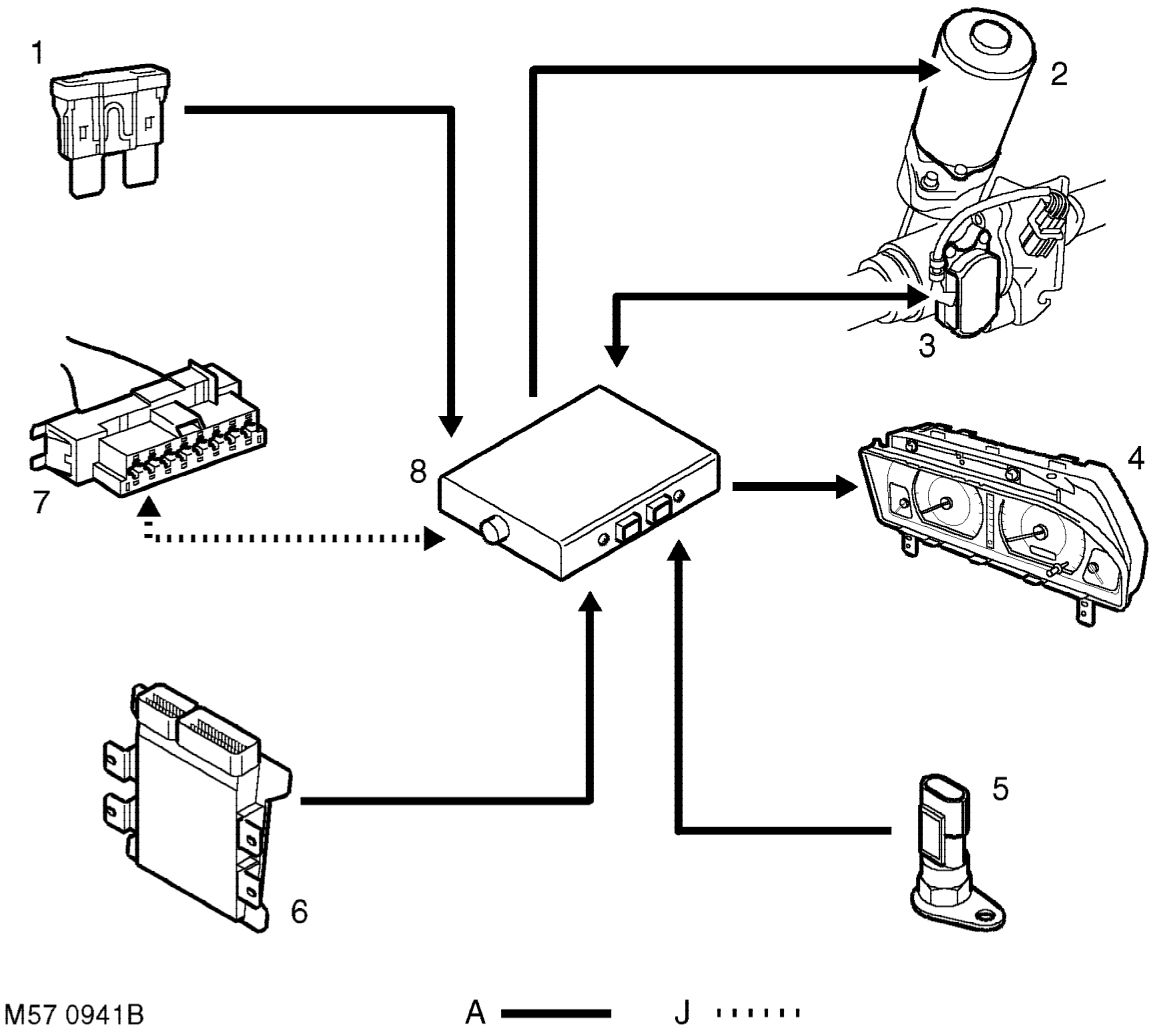

EPAS SYSTEM CONTROL DIAGRAM

Epas system control diagram

A= Hardwired; J= Diagnostic ISO 9141 K Line

  1. EPAS fuse 40A
  2. Steering motor and clutch
  3. Torque sensor
  4. Instrument pack
  5. Road speed transducer
  6. Engine Control Module (ECM)
  7. Diagnostic socket
  8. EPAS ECU
