SteeringSteering rack

STEERING RACK

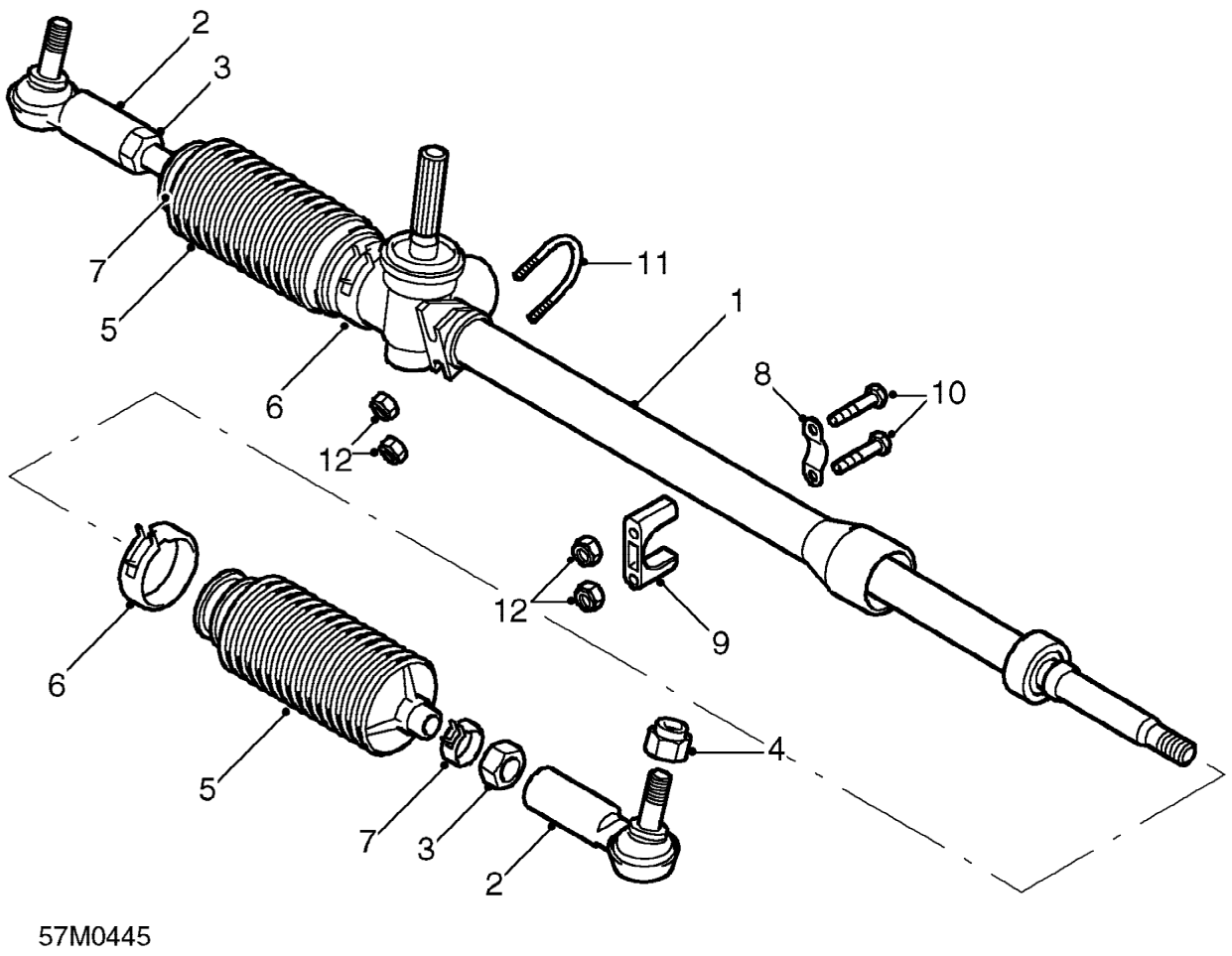

Steering rack
  1. Steering rack
  2. Track-rod end
  3. Locknut - track-rod end
  4. Self locking nut - track-rod end to steering arm
  5. Gaiter - steering rack
  6. Clip inner
  7. Clip outer
  8. Clamp - steering rack
  9. Spacer - steering rack
  10. Bolt - steering rack to subframe
  11. ’U’ bolt - steering rack to subframe
  12. Nut - steering rack to subframe
