SteeringSTEERING COLUMN (with Electrical PAS)

STEERING COLUMN (with Electrical PAS)

WARNING: The steering column is not serviceable. A damaged column must be renewed otherwise crash performance may be affected.

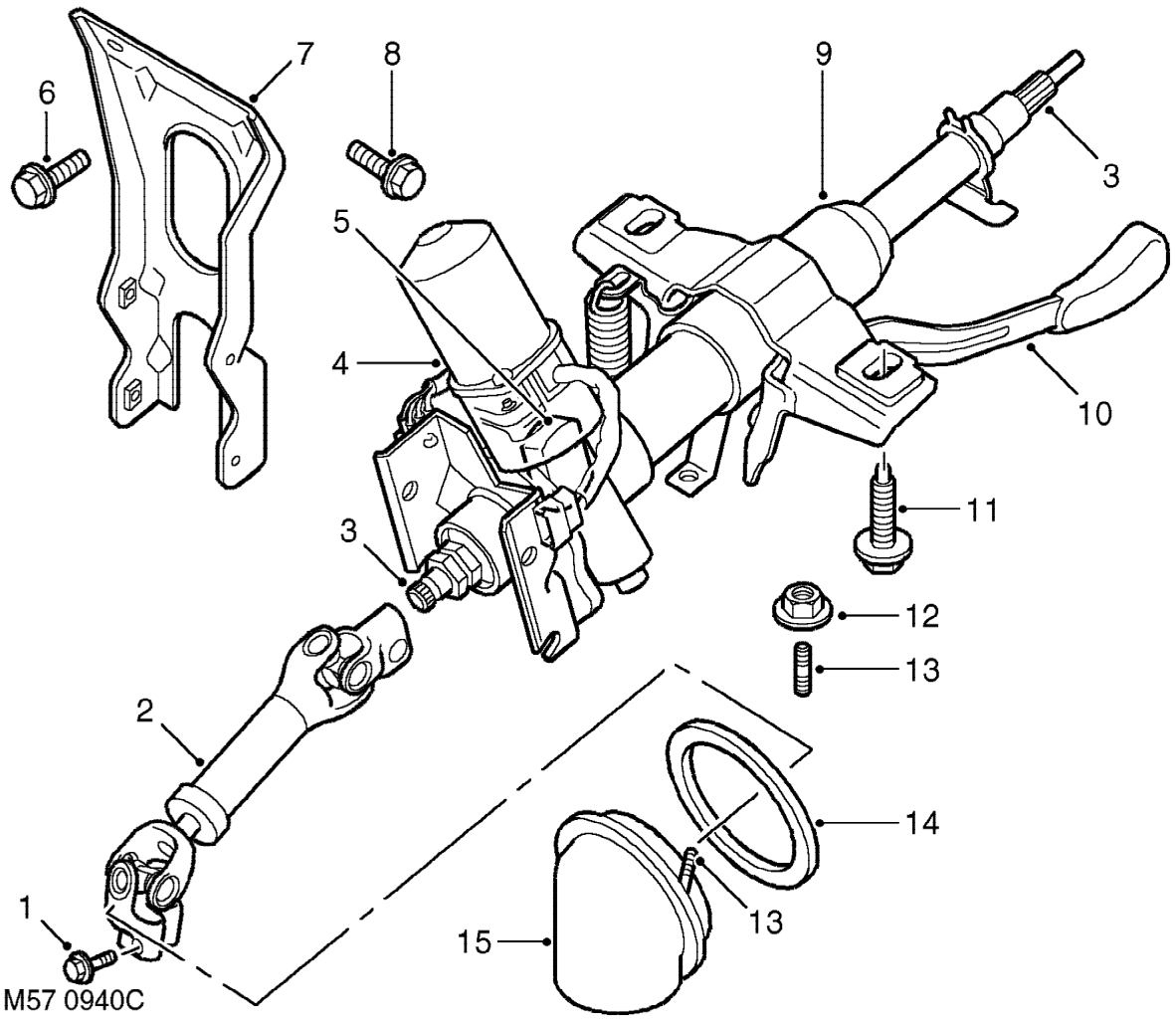

Steering column (with electrical pas)
  1. Bolt - intermediate shaft, 2 off
  2. Intermediate shaft
  3. Steering shaft
  4. EPAS steering motor
  5. Torque sensor
  6. Bolt - bracket to body, 2 off
  7. Bracket - steering column to body
  8. Bolt - bracket to steering column, 4 off
  9. Steering column
  10. Column tilt adjustment lever
  11. Bolt - steering column to body
  12. Nut - pinion cover, 3 off
  13. Stud - pinion cover, 3 off
  14. Pinion cover seal
  15. Pinion cover
