Workshop Manuals Factory service & repair Mini
Mini Mini Workshop Manual (1996-2000)10 · Clutch
10 · Transmission

Release bearing (page 2 of 2)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
ClutchRelease bearing · page 2 of 2
Diagram

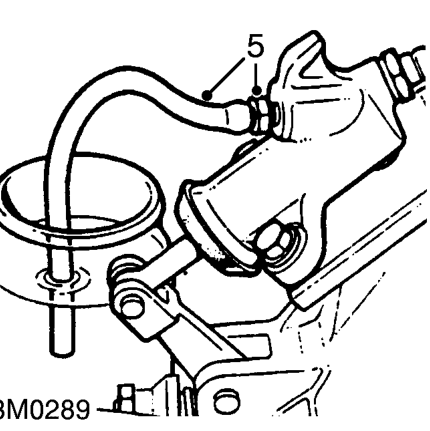

  1. Attach bleed tube to bleed screw on slave cylinder. Remove cylinder cap and open bleed screw, pump clutch pedal to drain fluid from cylinder.
Attach bleed tube to bleed screw on slave cylinder. Remove cylinder cap and open bleed scr

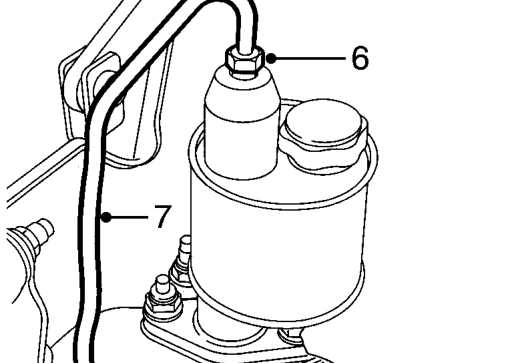

  1. Loosen unions securing pipe to master and slave cylinders.
  2. Remove clutch pipe.

CAUTION: Plug the connections.

Remove clutch pipe.

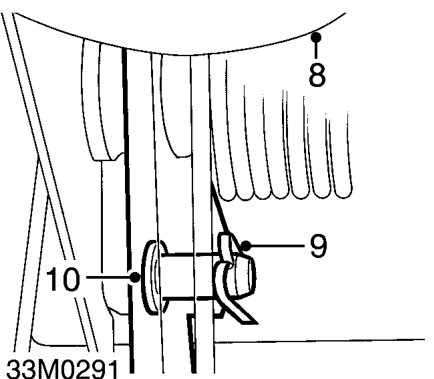

  1. Release heater air intake duct from adapter inside vehicle and remove duct.
  2. Remove split pin from clutch pedal clevis pin.
  3. Remove clutch pedal clevis pin.
Remove clutch pedal clevis pin.

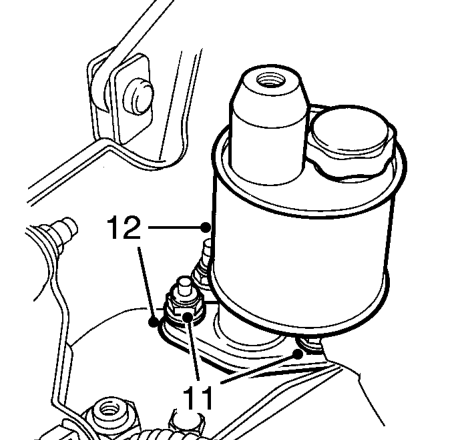

  1. Remove 2 nuts securing master cylinder to body.
  2. Remove master cylinder and discard gasket.
