FLYWHEEL HOUSING COVER

Service repair no - 33.10.04.99

Remove

  1. Remove starter motor. See ELECTRICAL, Repairs.
  2. Remove bonnet. See BODY, Exterior fittings.
  3. Remove ECM. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  4. Remove engine breather/oil separator. See EMISSION CONTROL, Repairs.
Flywheel housing cover – Remove engine breather/oil separator. See EMISSION CONTROL, Repairs.

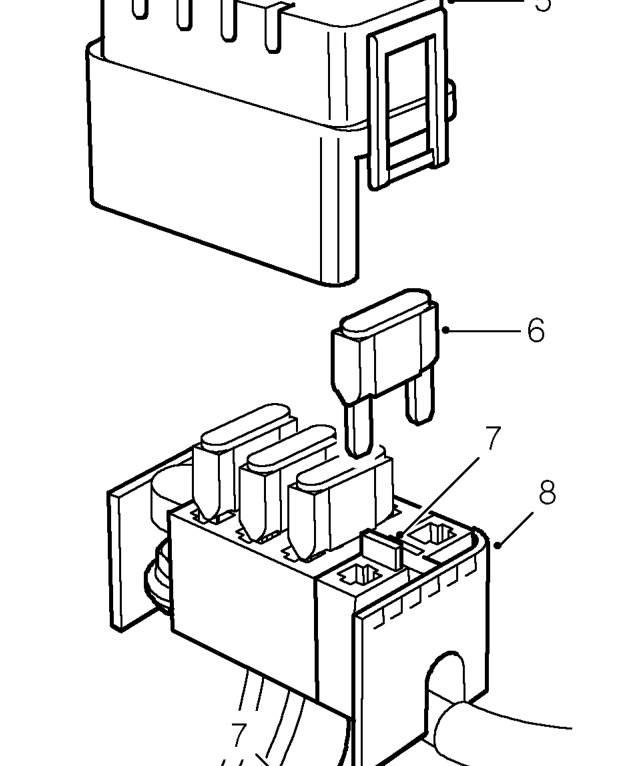

  1. Remove cover from engine compartment fuse box.
  2. Remove fusible link.
  3. Release retaining tag and disconnect engine harness lead from fuse box.
  4. Release engine compartment fuse box from ECM mounting bracket.
Flywheel housing cover – Release engine compartment fuse box from ECM mounting bracket.

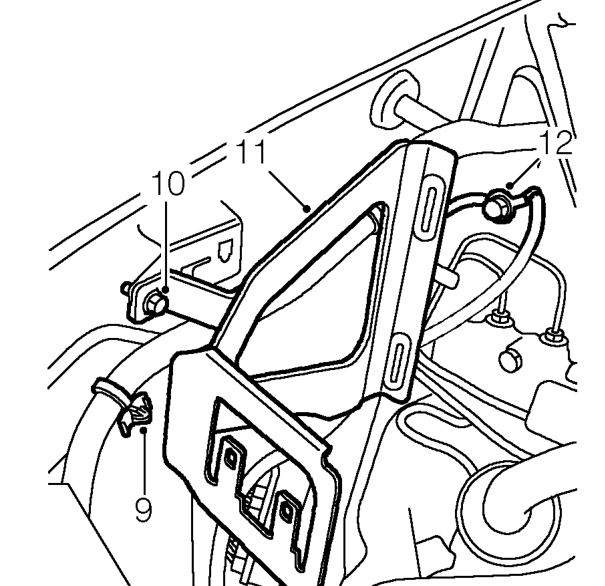

  1. Release clip securing main harness to ECM mounting bracket.
  2. Remove bolt securing ECM mounting bracket to body.
  3. Release ECM mounting bracket from body and remove.
  4. Remove bolt securing earth leads to body.
