Mini Mini Workshop Manual (1996-2000)10 · Clutch
10 · Transmission

Flywheel housing cover (page 4 of 5)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
ClutchFlywheel housing cover · page 4 of 5
Diagram

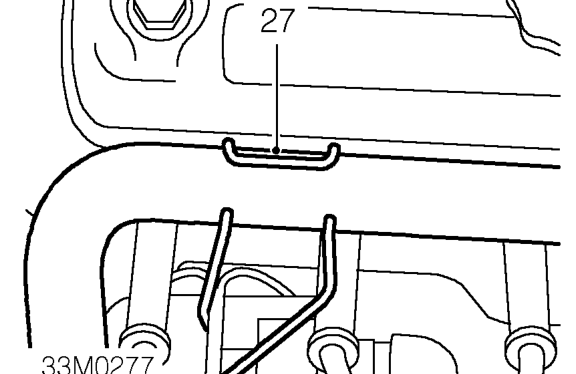

  1. Release radiator top hose from clip on ignition coil mounting bracket.
  2. Fit wooden block to jack and position jack to support engine.
Fit wooden block to jack and position jack to support engine.

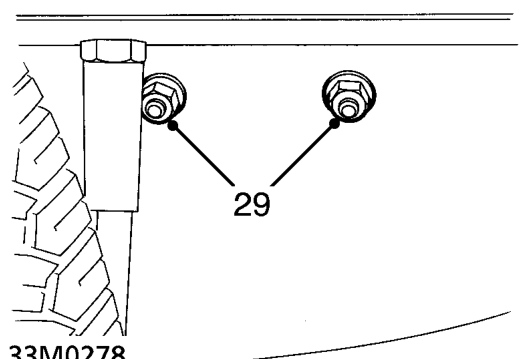

  1. Remove 2 nuts and bolts securing engine RH mounting to subframe, collect washers.
  2. Raise engine on jack.
Raise engine on jack.

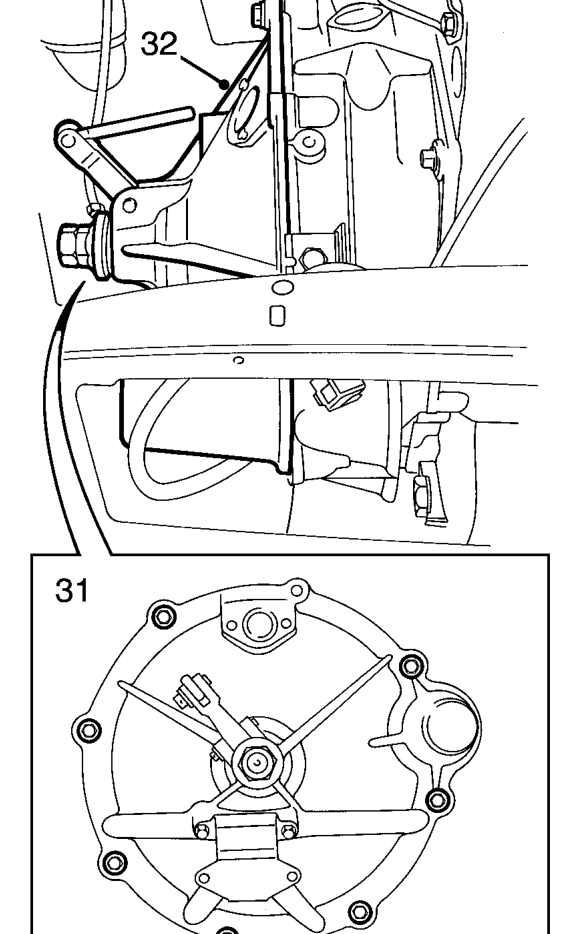

  1. Remove 6 bolts securing cover to flywheel housing.
  2. Release cover from flywheel housing.
  3. Lower engine on jack.
  4. Manoeuvre flywheel housing cover through gap between brake master cylinder and engine, remove cover.
