Mini Mini Workshop Manual (1996-2000)10 · Clutch
10 · Transmission

Flywheel housing cover (page 2 of 5)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
ClutchFlywheel housing cover · page 2 of 5

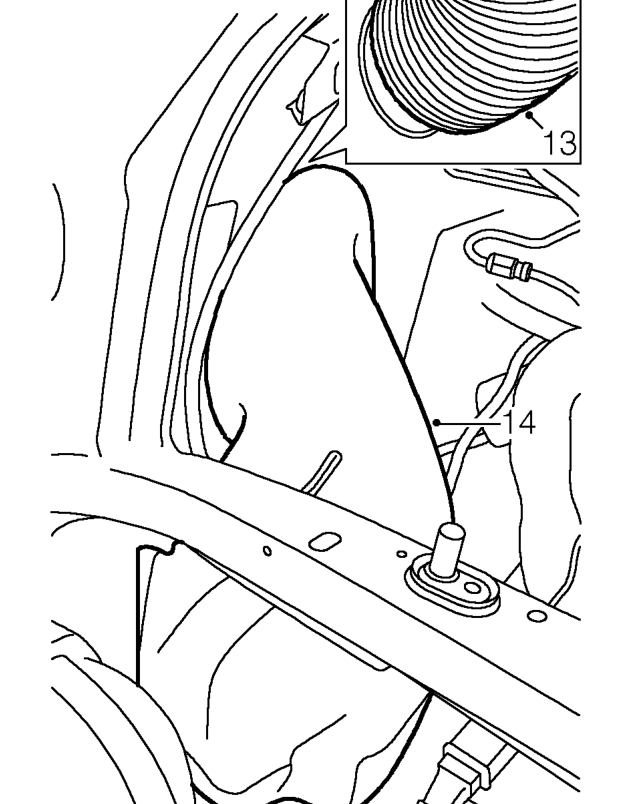

Diagram
  1. Disconnect fresh air intake hose from duct under RH front wing.

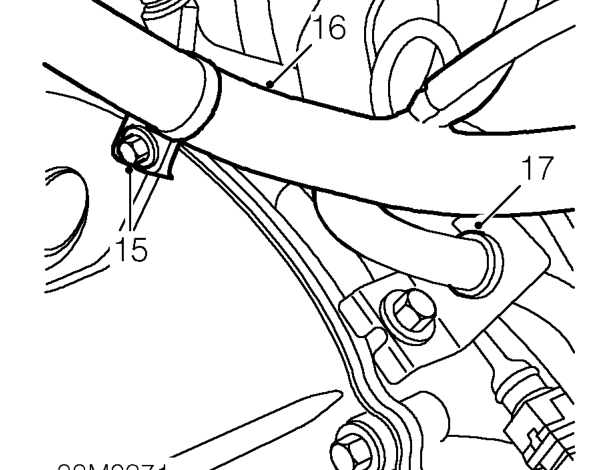

  2. Release and remove fresh air intake duct from inner wing.
Release and remove fresh air intake duct from inner wing.
  1. Remove bolt securing engine harness retaining bracket to flywheel housing.
  2. Position engine harness aside.

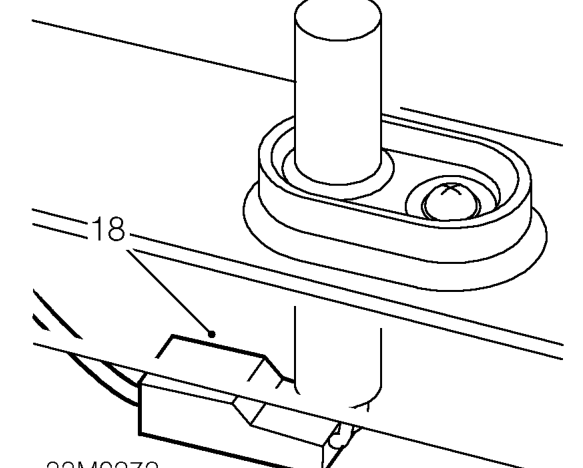

  3. Release battery feed cable grommet from bracket on flywheel housing.
Release battery feed cable grommet from bracket on flywheel housing.
  1. Disconnect Lucar from bonnet switch.
