Mini Mini Workshop Manual (1996-2000)10 · Clutch
10 · Transmission

Flywheel housing cover (page 3 of 5)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
ClutchFlywheel housing cover · page 3 of 5
Diagram

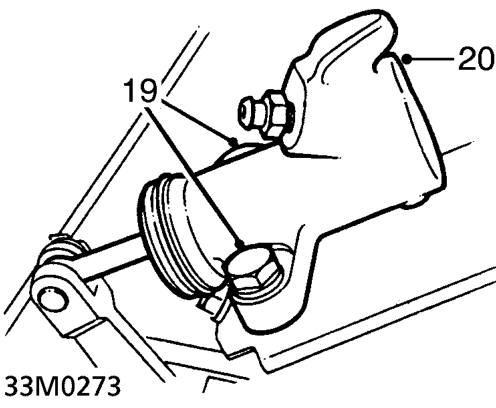

  1. Remove 2 bolts securing clutch slave cylinder to mounting bracket and collect washers.
  2. Withdraw slave cylinder from push rod and position aside.
Withdraw slave cylinder from push rod and position aside.

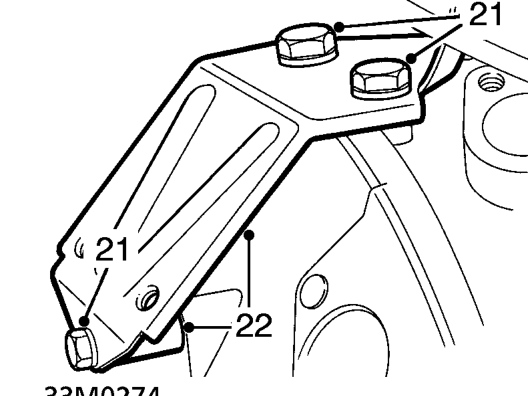

  1. Remove 3 bolts securing slave cylinder mounting bracket to flywheel housing.
  2. Remove slave cylinder mounting bracket and collect spacer.
Remove slave cylinder mounting bracket and collect spacer.

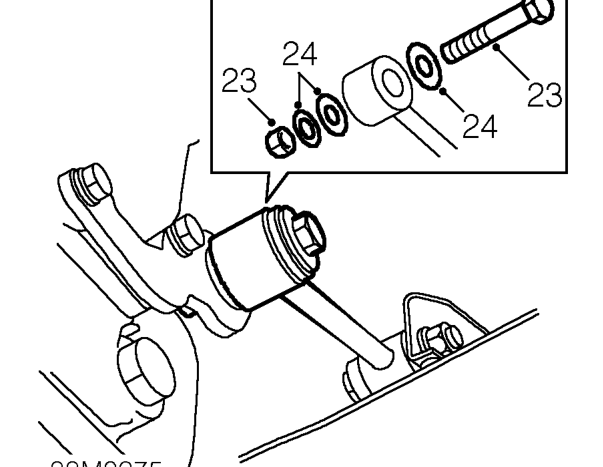

  1. Remove nut and bolt securing engine lower steady bar to bracket on flywheel housing.
  2. Collect steady bar washers and position aside.
Collect steady bar washers and position aside.

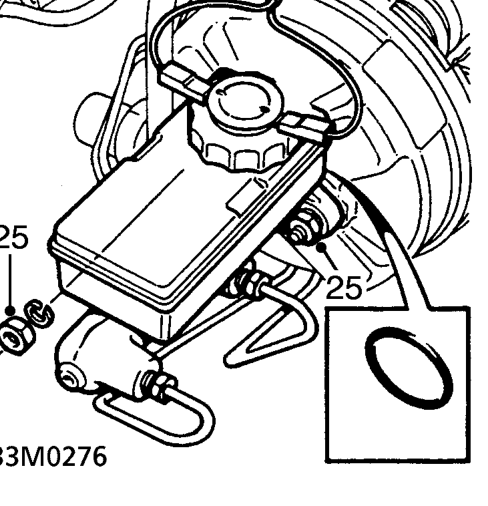

  1. Remove 2 nuts securing brake master cylinder to servo.
  2. Release master cylinder from studs on servo.
