Mini Mini Workshop Manual (1996-2000)11 · Manual gearbox
11 · Transmission

Speedometer drive gear

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs › Speedometer drive gear
Manual gearboxSpeedometer drive gear · page 1 of 2

SPEEDOMETER DRIVE GEAR

Service repair no - 37.25.01

Remove

  1. Remove front pipe to manifold gasket. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
Speedometer drive gear – Remove front pipe to manifold gasket. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

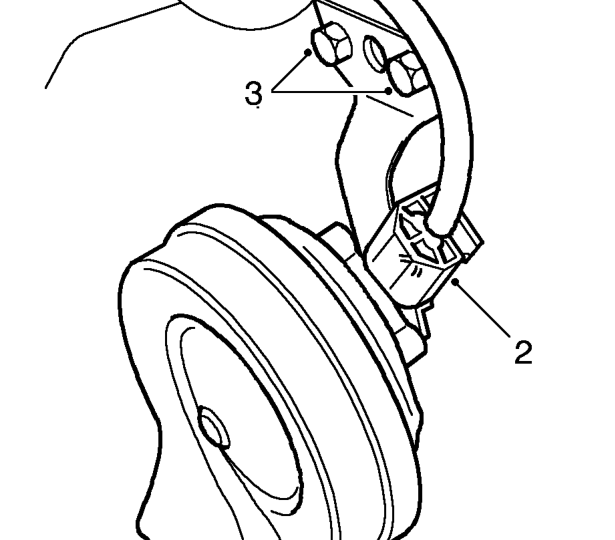

  1. Disconnect multiplug from horn.
  2. Remove 2 bolts securing horn to body and remove.
Speedometer drive gear – Remove 2 bolts securing horn to body and remove.

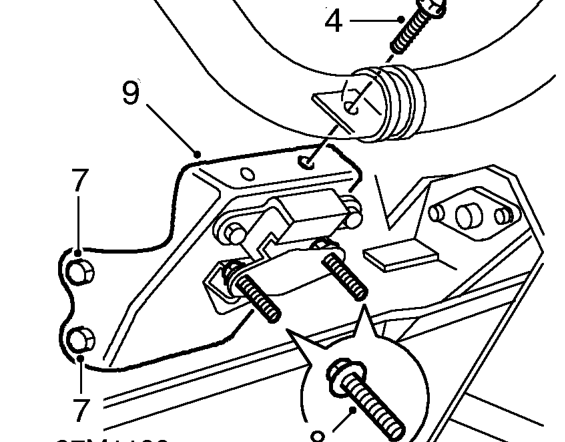

  1. Remove bolt securing radiator bottom hose to engine mounting.
  2. Position jack to support engine.

CAUTION: Use a block of wood or hard rubber pad between jack and engine.

  1. Take weight off engine mounting.
  2. Remove 2 bolts securing engine mounting bracket to gearbox.
  3. Remove 2 bolts securing engine mounting to subframe.
  4. Remove engine mounting and bracket.
