Speedometer drive gear (page 2 of 2)

10. Remove 3 bolts securing engine mounting adaptor plate to gearbox. lower front bolt.

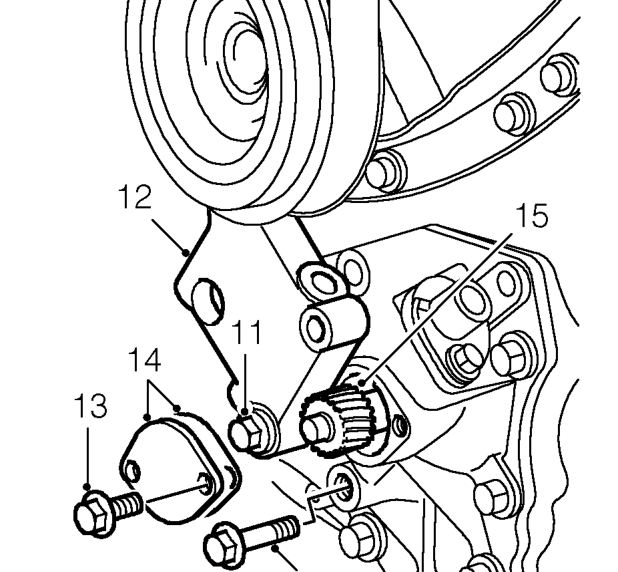

11. Loosen lower bolt securing adaptor plate to gearbox.
12. Release adaptor plate from gearbox and rotate anti-clokwise to gain access to speedometer drive gear cover plate.

NOTE: Engine may have to be raised for adaptor plate to clear crankshaft front pully.

13. Remove 2 bolts securing drive gear cover plate to housing.
14. Remove cover plate and discard gasket.
15. Remove speedometer drive gear.

Refit

1. Position speedometer drive gear in housing ensuring correct engagement with mainshaft and speedometer pinion.
2. Clean mating faces of cover plate and housing.
3. Position cover plate and new gasket.
4. Fit bolts securing cover plate to housing and tighten to 8 Nm.
5. Position adaptor plate to gearbox and align bolt holes.
6. Fit bolts securing adaptor plate to to gearbox and tighten to 25 Nm.
7. Tighten bolt securing adaptor plate to gearbox to 25 Nm.
8. Position engine mounting and bracket.
9. Lower engine to align engine mounting to subframe.
10. Fit bolts securing engine mounting to adaptor plate and tighten to 25 Nm.
11. Fit bolts securing engine mounting to subframe and tighten to 22 Nm.
12. Remove jack.
13. Fit bolt securing radiator bottom hose to engine mounting.
14. Position horn to body, fit bolts and tighten to 9 Nm.
15. Connect multiplug to horn.
16. Fit front pipe to manifold gasket. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
