Steering column lock (page 2 of 2)

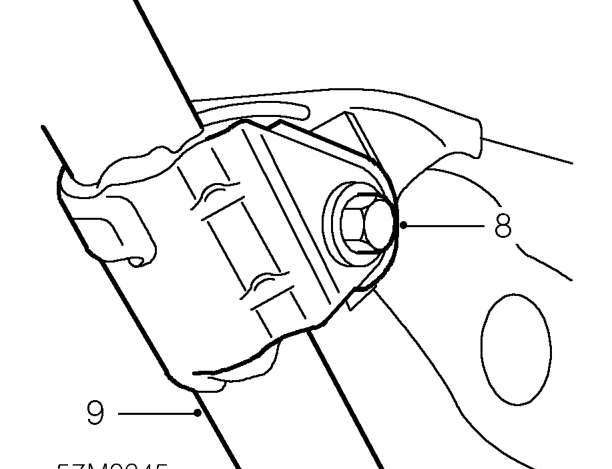

8. Remove bolt securing steering column to support bracket.
9. Remove steering column assembly.
10. Position steering column in vice.
11. Centre punch shear bolts securing lock to column.

12. Using a 5mm drill, drill out 2 shear bolts securing column to lock.

CAUTION: Take care not to damage lock body if lock is to be refitted.

13. Remove steering column lock.

Refit

1. Locate steering column lock in position on steering column, fit but do not tighten shear bolts.

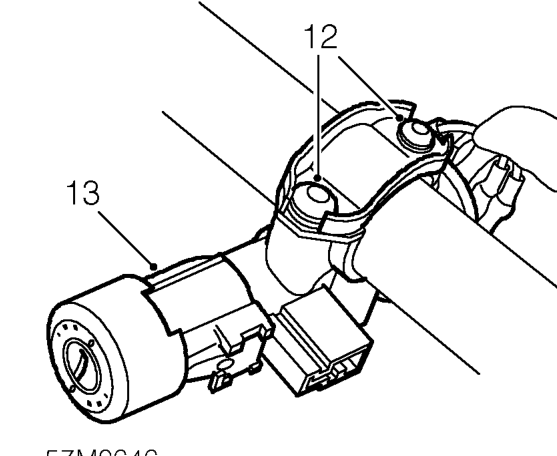

2. Insert key, confirm correct operation of steering lock and that key turns freely.
3. Tighten shear bolts until heads shear off.
4. Remove steering column assembly from vice.

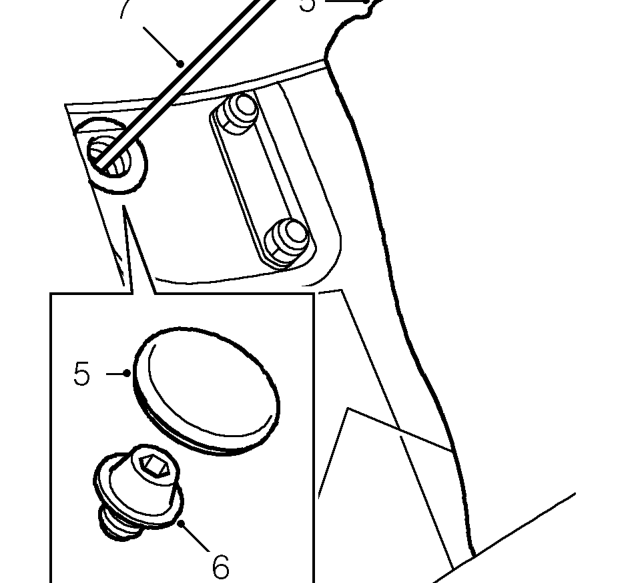

5. Release carpet from LH foot well to access grommet, remove grommet from floor.
6. Using an Allen key, remove plug from steering rack.
7. Using assistance, move road wheels until a 6mm diameter rod can be inserted into the centralising hole in the steering rack.
8. Fit steering column assembly to steering rack pinion.
9. Fit pinch bolt securing column to pinion and tighten to 15 Nm.
10. Reposition carpet round steering column.
