Mini Mini Workshop Manual (1996-2000)13 · Steering
13 · Steering & suspension

Steering column assembly

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs › Steering column assembly
SteeringSteering column assembly · page 1 of 3
  1. Align steering column to mounting bracket, fit bolt and tighten to 25 Nm.
  2. Connect multiplugs to column switches and ignition/starter switch.
  3. Connect 2 multiplugs to rotary coupler.
  4. Fit steering column nacelle. See this section.
  5. Remove 6mm rod from steering rack, fit and tighten blanking plug.
  6. Fit grommet to floor and reposition carpet.
  7. Connect battery earth lead.
  8. Carry out system check by turning the ignition on and checking that the SRS warning light illuminates then extinguishes after 3 seconds.

STEERING COLUMN ASSEMBLY

Service repair no - 57.50.01

Remove

  1. Disconnect battery earth lead.
  2. Remove rotary coupler. See ELECTRICAL, Repairs.

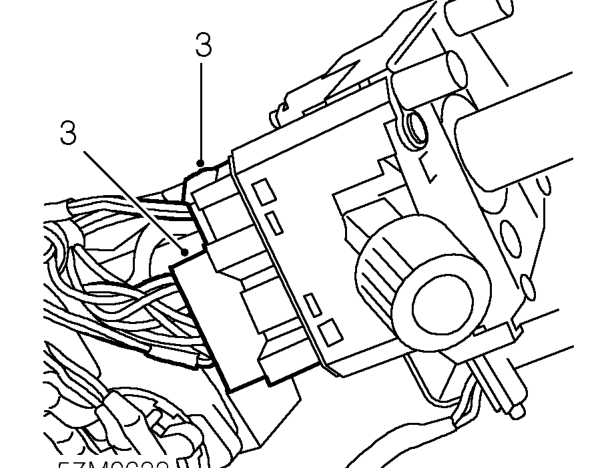

Steering column assembly – Remove rotary coupler. See ELECTRICAL, Repairs.
  1. Disconnect 2 multiplugs from indicator/headlamp switch.
