Mini Mini Workshop Manual (1996-2000)13 · Steering
13 · Steering & suspension

Steering column assembly (page 2 of 3)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
SteeringSteering column assembly · page 2 of 3
Diagram

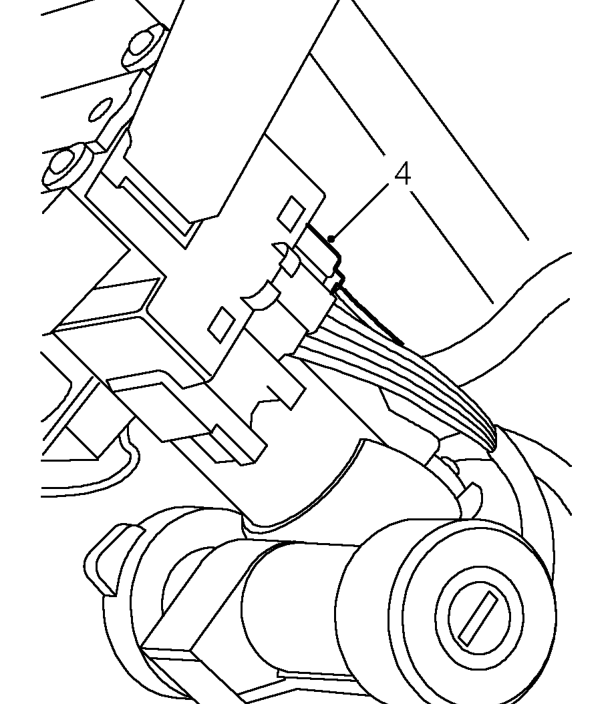

  1. Disconnect multiplug from windscreen washer and wiper switch.
Disconnect multiplug from windscreen washer and wiper switch.

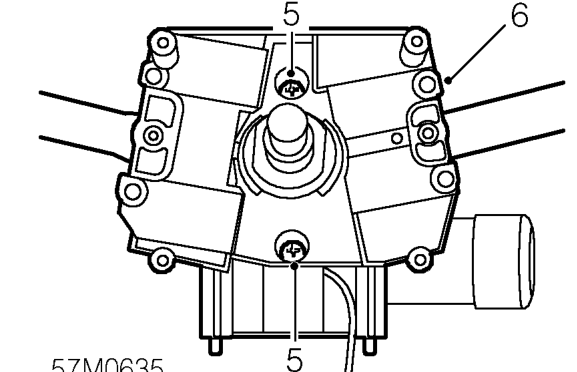

  1. Remove 2 screws securing column switch assembly to steering column.
  2. Remove steering column switch assembly.
Remove steering column switch assembly.

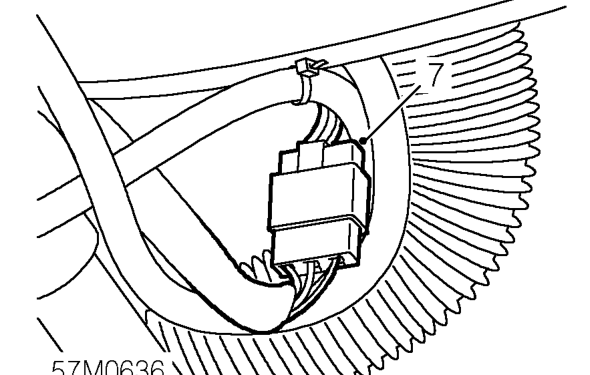

  1. Disconnect multiplug from ignition/starter switch.
  2. Release carpet from around steering column.
Release carpet from around steering column.

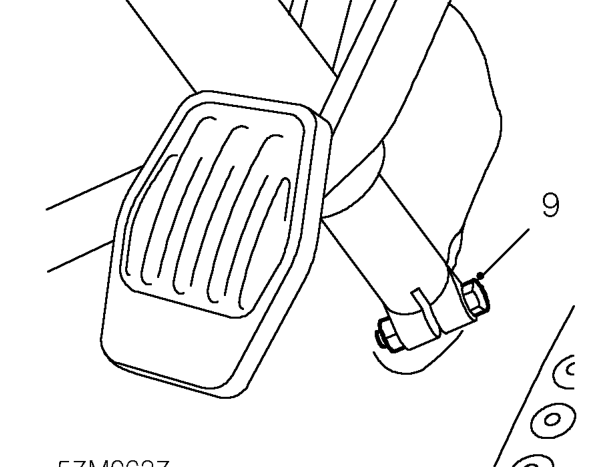

  1. Remove bolt securing steering column to steering rack pinion.
