Steering column assembly (page 3 of 3)

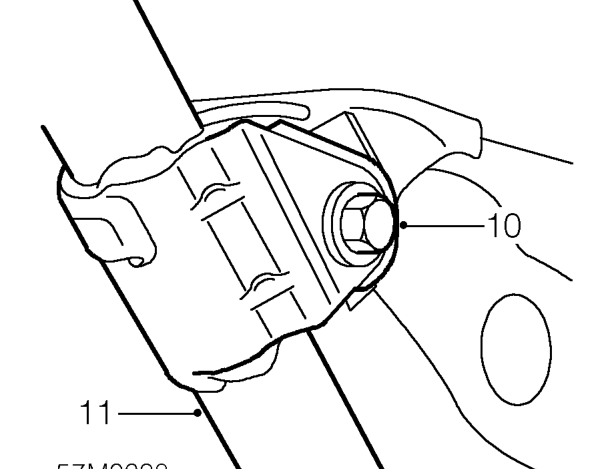

10. Remove bolt securing steering column to support bracket.
11. Remove steering column assembly.

Do not carry out further dismantling if component is removed for access only.

12. Position steering column in a vice.

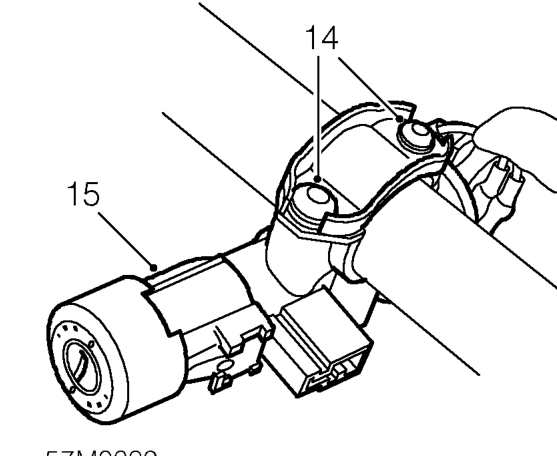

13. Centre punch shear bolts securing lock to column.

14. Using a 5mm drill, drill out 2 shear bolts securing lock to column.

CAUTION: Take care not to damage lock body if lock is to be refitted.

15. Remove steering column lock.
16. Remove steering column assembly from vice.
17. Position new steering column assembly in vice.
18. Locate steering column lock in position on steering column, fit but do not tighten shear bolts.
19. Insert key, confirm correct operation of steering lock and that key turns freely.
20. Tighten shear bolts until heads shear off.
21. Remove steering column assembly from vice.
