Steering wheel (page 2 of 2)

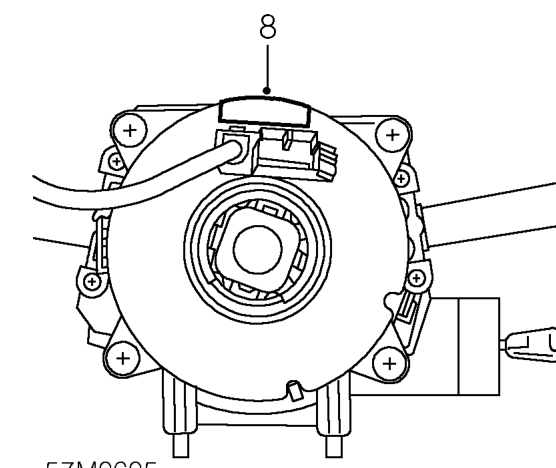

8. Attach tape across edge of rotary coupler to retain in central setting.

Do not carry out further dismantling if component is removed for access only.

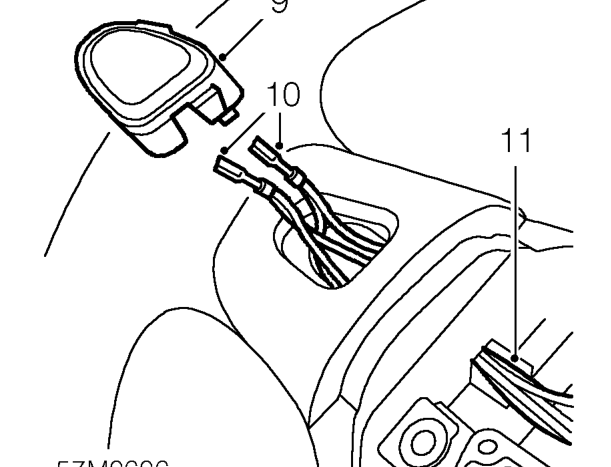

9. Release horn switches from steering wheel.
10. Disconnect Lucar connections from switches and remove switches.
11. Remove horn harness from steering wheel.

Refit

1. Fit horn harness to steering wheel.
2. Position horn switches to wheel, connect Lucars and fit switches.
3. Remove retaining tape from rotory coupler.
4. Ensure road wheels are in straight ahead position and indicator cancel cam aligned vertical.
5. Engauge rotory coupling and fit steering wheel to column, ensure wheel spokes are horizontal.
6. Fit NEW self-locking nut, and tighten to 49 Nm.
7. Connect horn multiplug to rotary coupler.
8. Fit driver’s airbag module. See RESTRAINT SYSTEMS, Repairs.
