Diamante Sedan V6-3.5L SOHC (1999)

Page 1
background image

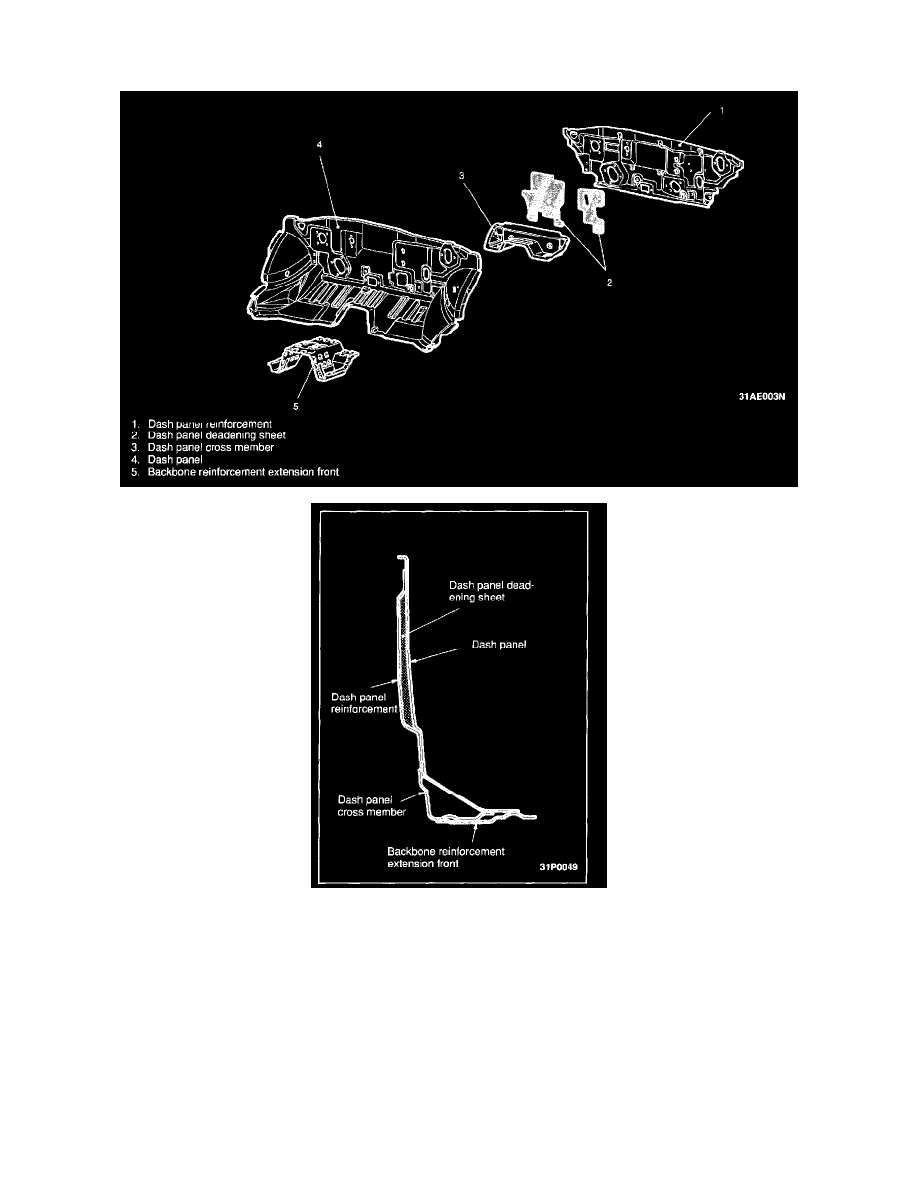

Firewall: Diagrams

DASH PANEL

A deadening sheet (cellular rubber sheet) is provided between the dash panel and the dash panel reinforcement. This double wall construction improves
the soundproofing effects.
