G8 V8-6.0L (2009)
Splash Guard: Service and Repair
Engine Splash Shield Replacement
Removal Procedure
Danger: To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the
vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed
and strap the vehicle to the hoist.
Warning: Refer to Safety Glasses Warning (See: Service Precautions/Technician Safety Information/Safety Glasses Warning).
1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (See: Maintenance/Vehicle Lifting/Service and Repair).

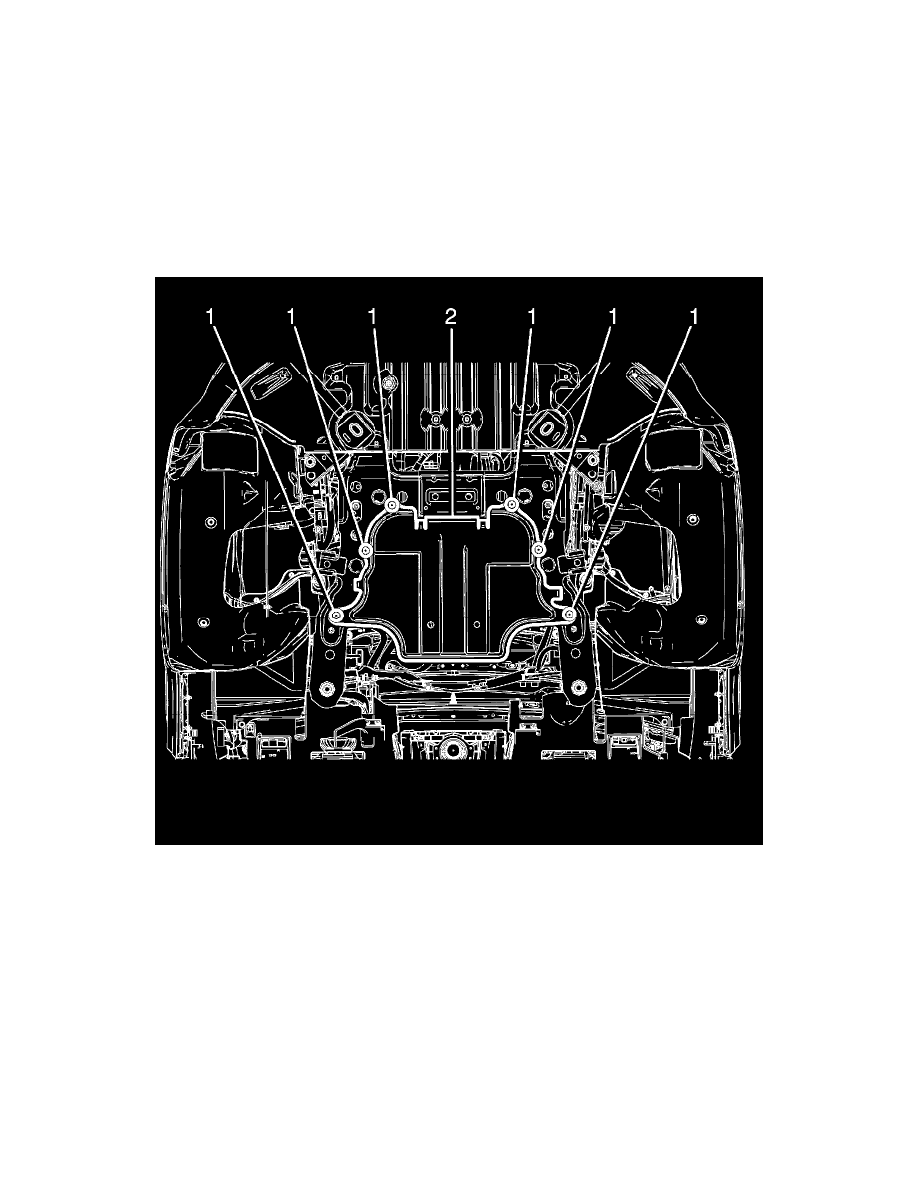

2. Remove the engine splash shield to front subframe retaining screws (1).
3. Remove the engine splash shield (2) from the front subframe.
Installation Procedure
