G8 V8-6.0L (2009)
Timing Component Alignment Marks: Locations
Caution: Do not turn the crankshaft assembly after the timing chain has been removed in order to prevent damage to the piston assemblies or the
valves.
^

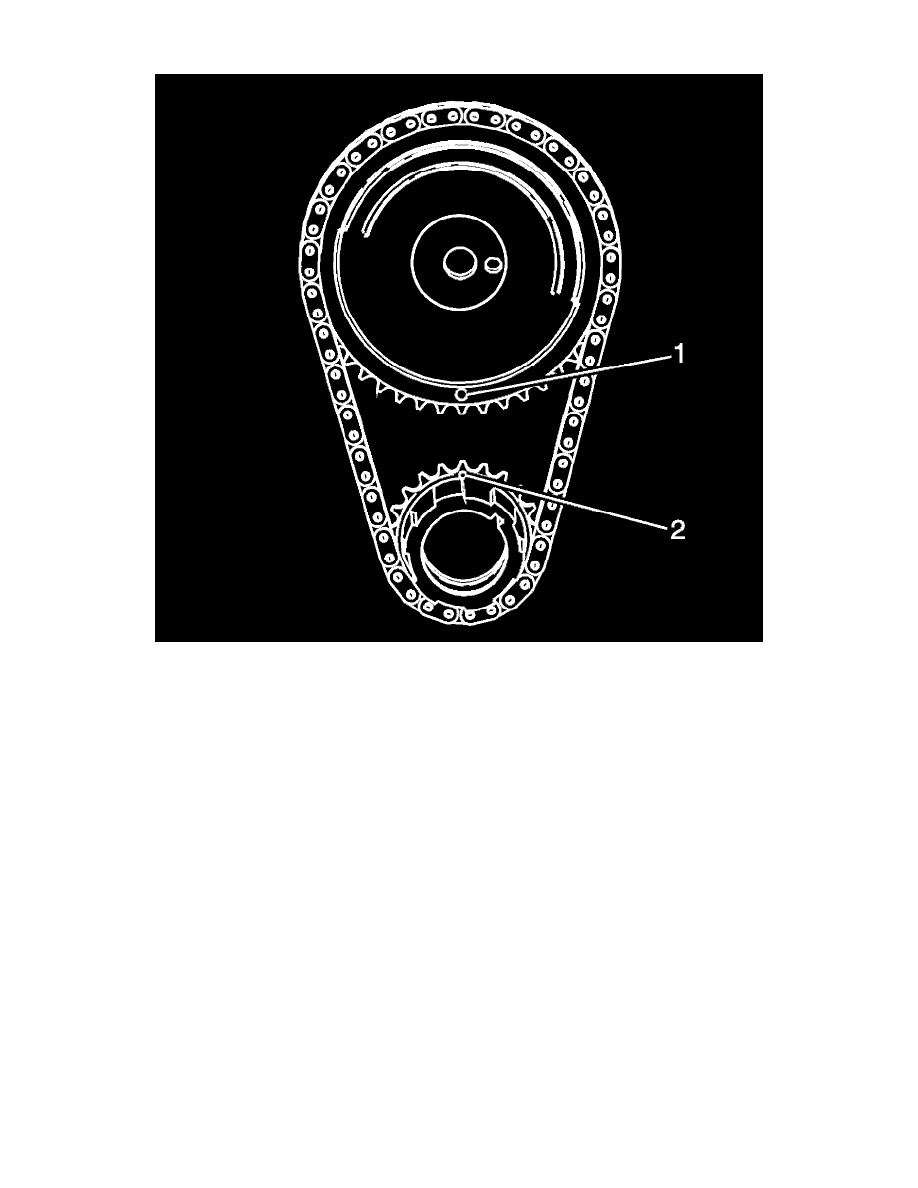

Inspect the sprockets for correct alignment. The mark on the camshaft sprocket (1) should be located in the 6 o'clock position and the mark on the
crankshaft sprocket (2) should be located in the 12 o'clock position.
