Primary bearing (page 2 of 4)

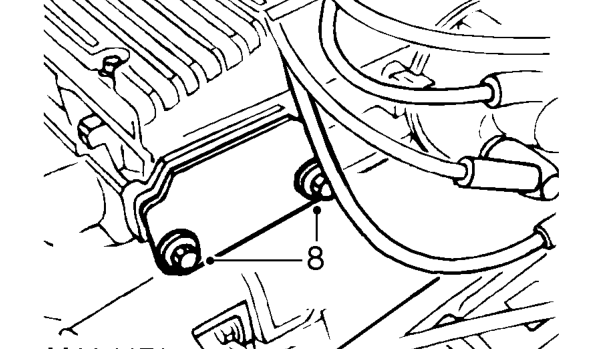

8. Remove 2 bolts securing camshaft rear cover plate to cylinder head and remove plate.

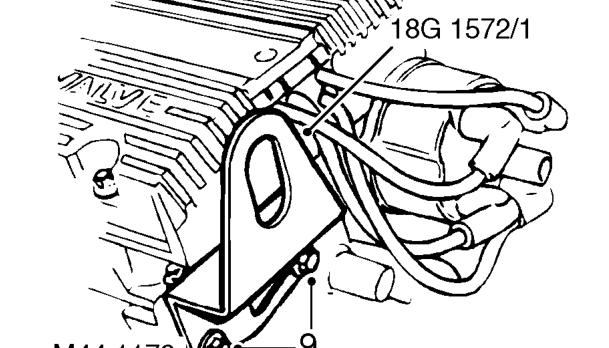

9. Fit lifting bracket18G 1572/1 to cylinder head, fit and tighten bolts to 10 Nm.
10. Remove gearbox primary cover. See this section.
11. Connect hoist to lifting bracket and support weight of engine/gearbox.
12. Remove nut securing LH gearbox mounting to bracket, remove keyed washer.
13. Lower engine/gearbox sufficient to gain access to primary housing.

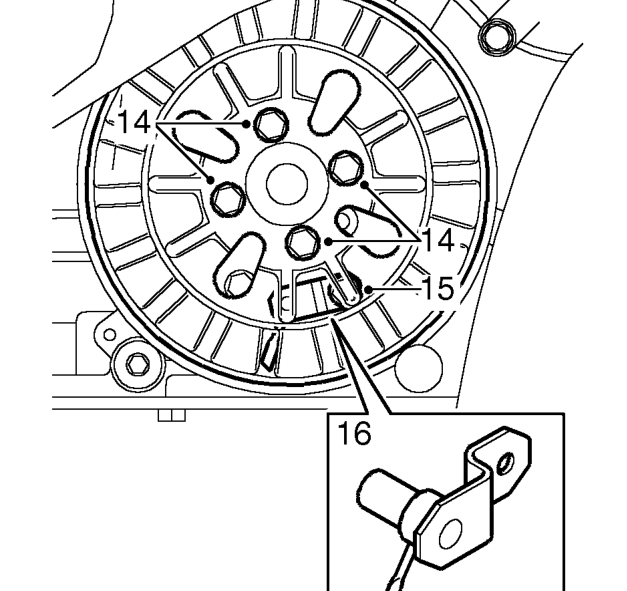

14. Remove and discard 4 bolts securing engine pitot chamber to oil pump drive.
15. Rotate pitot chamber sufficient to remove lower RH oil pump bolt which secures the engine pitot tube.
16. Rotate pitot tube 180°anti-clockwise and remove pitot chamber, collect pitot tube.

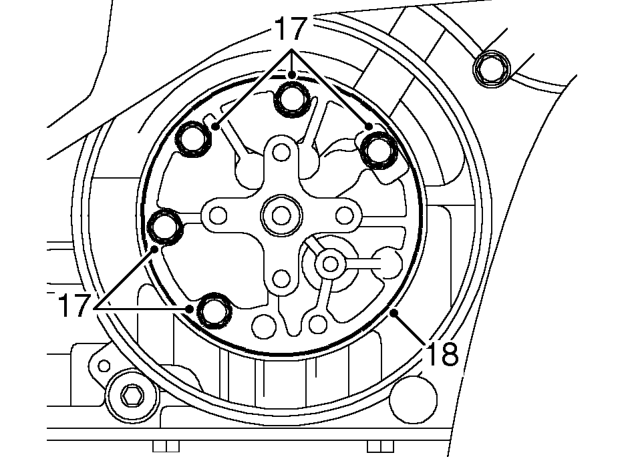

17. Remove 5 remaining bolts securing oil pump.
18. With care, position 2 levers 180 °apart and remove oil pump.

NOTE: To prevent damage to primary housing, place 2 pieces of wood between levers and primary housing when removing oil pump.
