Sun roof glass height adjustment

SUN ROOF GLASS HEIGHT ADJUSTMENT

Service repair no - 76.82.04

Adjust

1. Sun roof glass should sit within its aperture as follows: i.Front corners - Flush with roof to 1 mm low. ii.Rear corners - Flush with roof to 1 mm high. iii.Equal seal pressure front and rear. If outside these limits, carry out the following procedure.

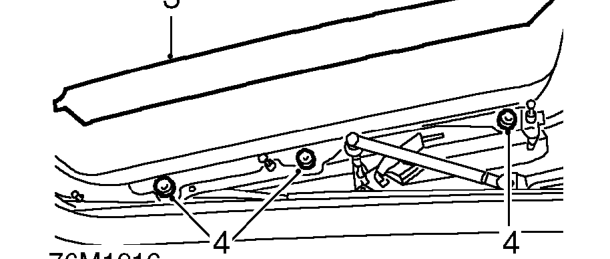

2. Move sun roof glass to tilt position.

3. Remove 2 finishers from sun roof glass frame.
4. Close sun roof from tilt position.
5. Slide sun roof to open position and then close.
6. Loosen 6 Torx screws securing glass to sun roof frame.
7. Adjust glass as required.
8. Tighten Torx screws to 5 Nm.

NOTE: Apply thread locking fluid to the screws.

9. Move sun roof glass to tilt position.
10. Fit finishers to sun roof glass frame.

SUN ROOF GLASS

Service repair no - 76.82.05

Remove

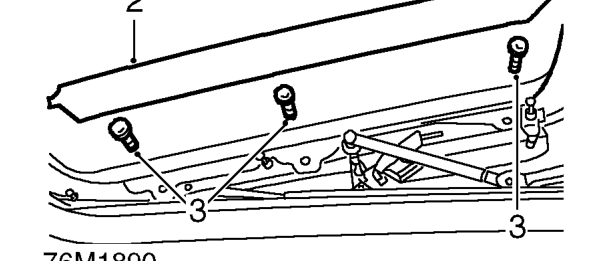

1. Open the sunshade and tilt up the glass.

2. Remove 2 finishers from sun roof glass frame.
3. Remove 6 TX25 Torx screws securing glass to frame.
4. Remove glass.

Refit

1. Position glass to sunroof.

NOTE: Apply thread locking fluid to the screws.

2. Finger tighten screws securing glass to frame.
3. Adjust height of sun roof glass. See this section.
4. Fit finishers to sun roof glass frame.
