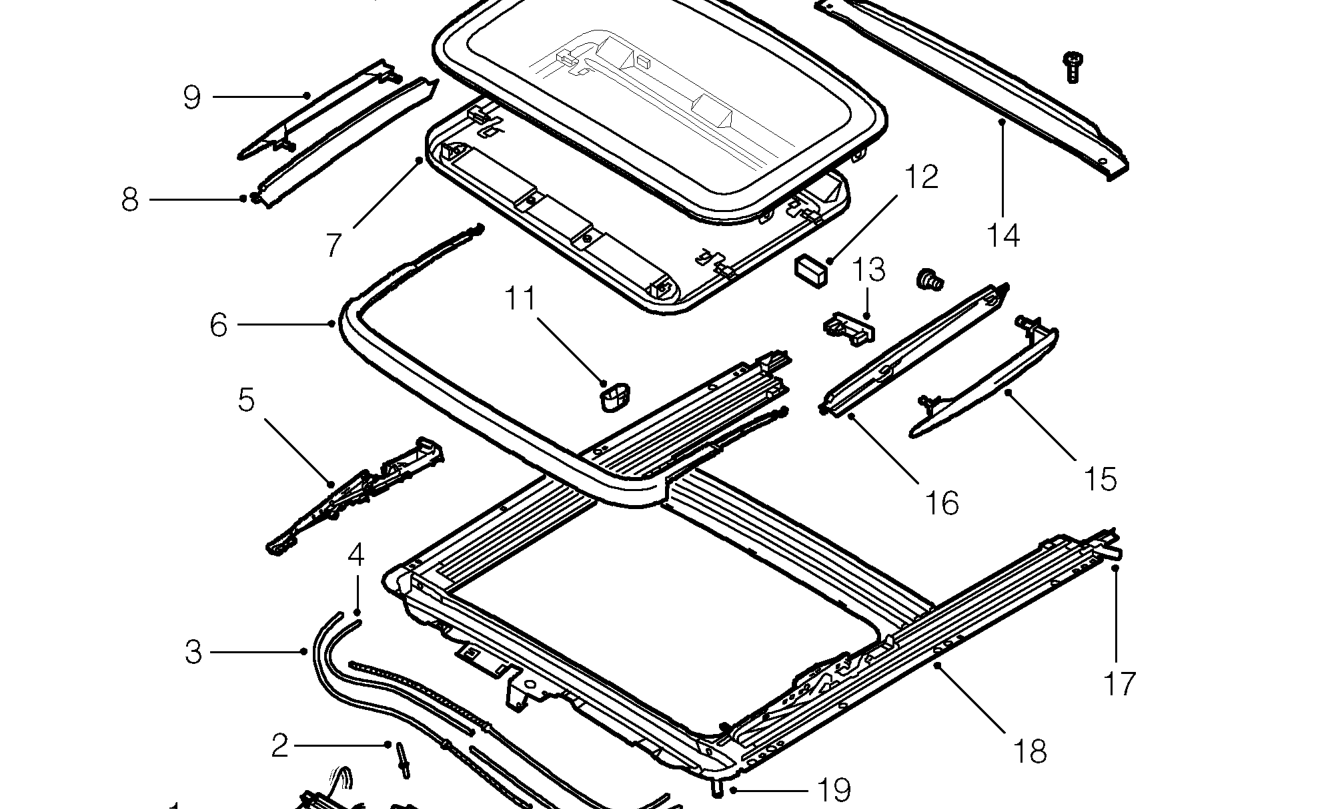

Sun roof components

SUN ROOF COMPONENTS

1. Position sensor
2. Locating pin
3. Drive cable
4. Tube - drive cable
5. Assembly mechanism
6. Wind deflector
7. Sunshade
8. Mechanism cover - inner
9. Mechanism cover - outer
10. Glass panel
11. Stop
12. Buffer - sunshade
13. Guide plug
14. Drain channel
15. Mechanism cover - outer
16. Mechanism cover - inner
17. Drain tube - rear
18. Frame
19. Drain tube - front
20. Drive cable
21. Clip - inner tubes
22. Tube - drive cable
23. Clip - outer tubes
24. Location bracket
25. Motor and drive gear assembly
