Rear seat belt - centre (page 2 of 2)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Seats and seat belts
BodyRear seat belt - centre · page 2 of 2
Diagram

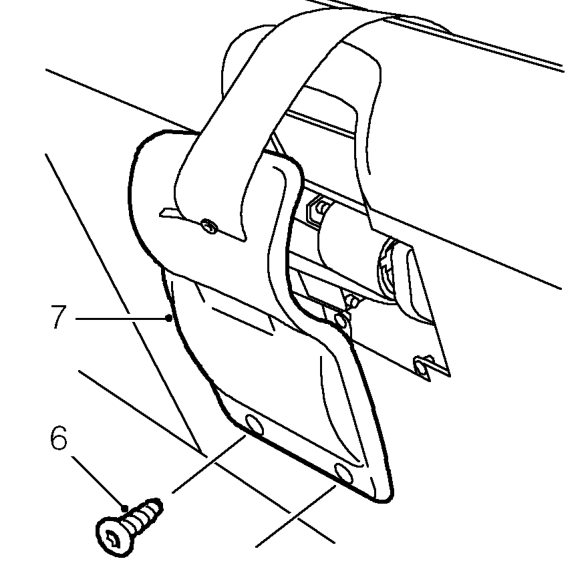

  1. Remove 2 screws securing seat belt reel cover to rear seat squab.
  2. Move cover aside.

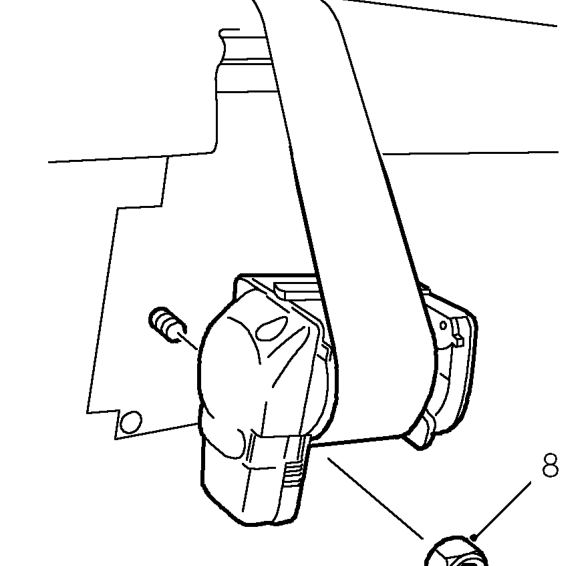

Move cover aside.
  1. Remove nut securing reel to rear seat squab.
  2. Remove seat belt.
  3. Release seat belt reel cover from seat belt.

Refit

  1. Fit seat belt reel cover to seat belt.
  2. Fit seat belt reel to rear seat squab.
  3. Fit nut securing reel to squab and tighten to 30 Nm.
  4. Fit reel cover to squab and tighten screws.
  5. Fit parcel shelf. See Interior trim components.
  6. Fit Torx screw securing seat belt to body and tighten to 50 Nm.
  7. Position seat belt stalk to floor and tighten Torx screw to 50 Nm.
  8. Fit rear seat cushion. See this section.
