REAR SEAT BELT - SIDE - 5 DOOR

Service repair no - 76.73.23

Remove

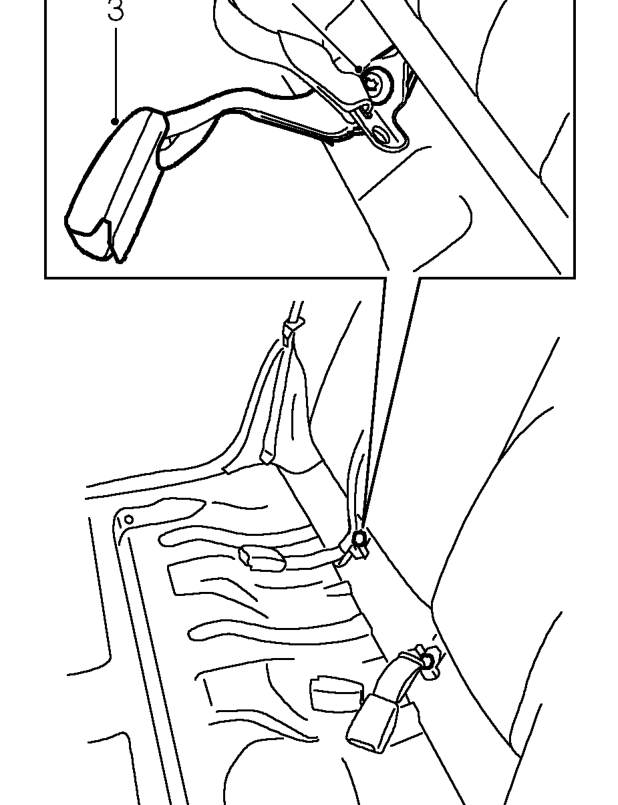

  1. Remove rear quarter lower trim casing. See Interior trim components.
Rear seat belt - side - 5 door – Remove rear quarter lower trim casing. See Interior trim components.

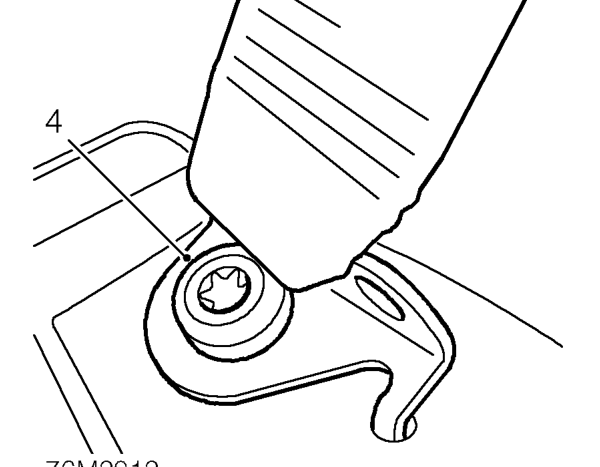

  1. Remove Torx screw securing seat belt stalk to body.
  2. Remove seat belt stalk.
Rear seat belt - side - 5 door – Remove seat belt stalk.
  1. Remove Torx screw securing seat belt to floor.
Rear seat belt - side - 5 door – Remove Torx screw securing seat belt to floor.

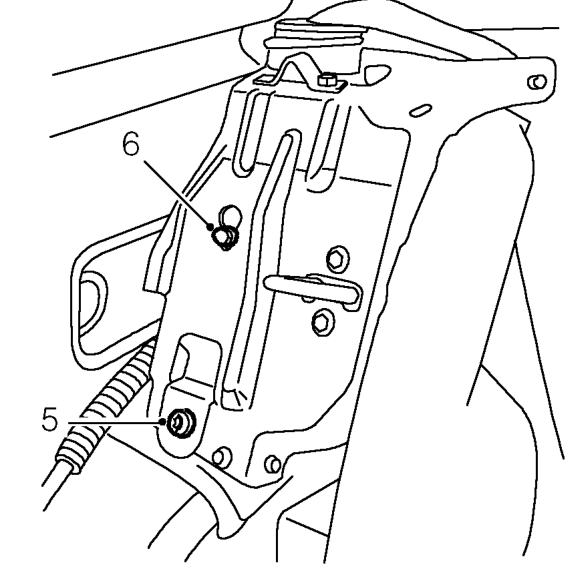

  1. Remove Torx screw securing seat belt reel to rear squab support panel.
  2. Remove seat belt reel locating bolt.
  3. Remove seat belt.
