FRONT SQUAB COVER

Service repair no - 78.90.08

Remove

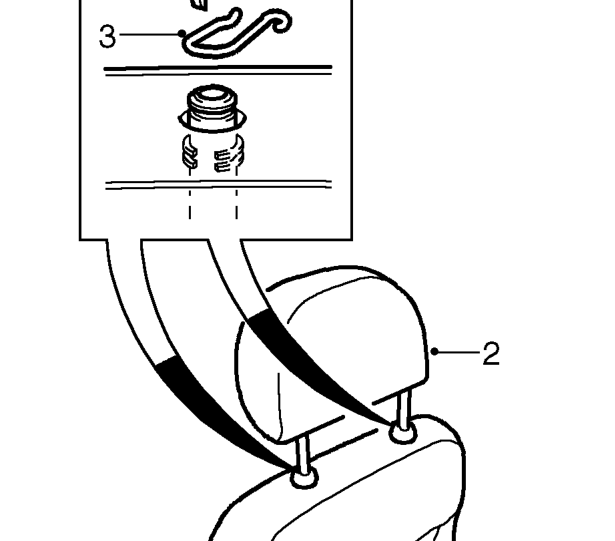

  1. Remove front seat. See this section.
Front squab cover – Remove front seat. See this section.
  1. Remove head restraint.

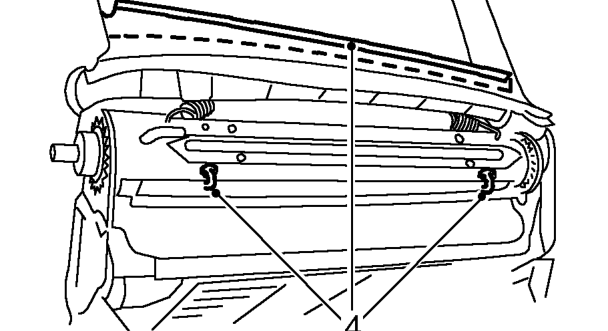

  2. Release spring clips and remove head restraint guides from squab frame.
Front squab cover – Release spring clips and remove head restraint guides from squab frame.

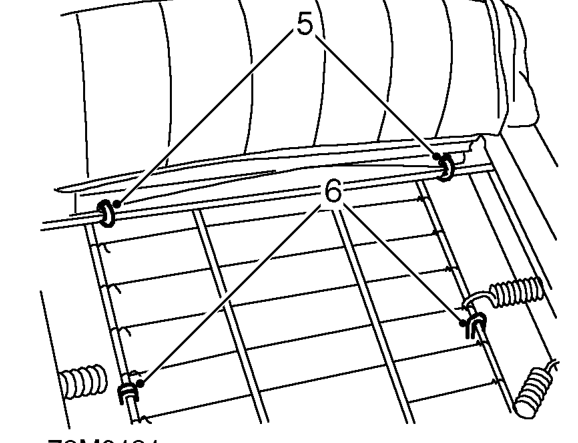

  1. Release cover hooks and retainer from rear bar.
Front squab cover – Release cover hooks and retainer from rear bar.
  1. Remove 2 rear hog rings from squab.

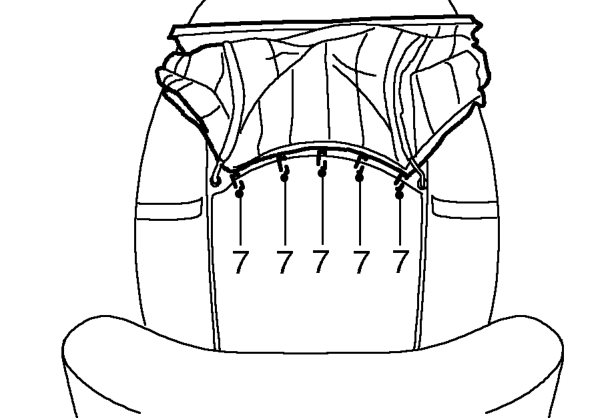

  2. Release cover hooks from squab suspension and pass through cushion.
Front squab cover – Release cover hooks from squab suspension and pass through cushion.
  1. Remove 5 front hog rings from squab.
  2. Remove cover from squab.
