Rover 200 Workshop Manual (1995-1999)27 · Body
27 · Body & interior

Front seat

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Seats and seat belts › Front seat
BodyFront seat

FRONT SEAT

Service repair no - 78.10.44.99

Remove

CAUTION: See safety precautions in SRS section before starting work.

  1. Disconnect battery earth lead.

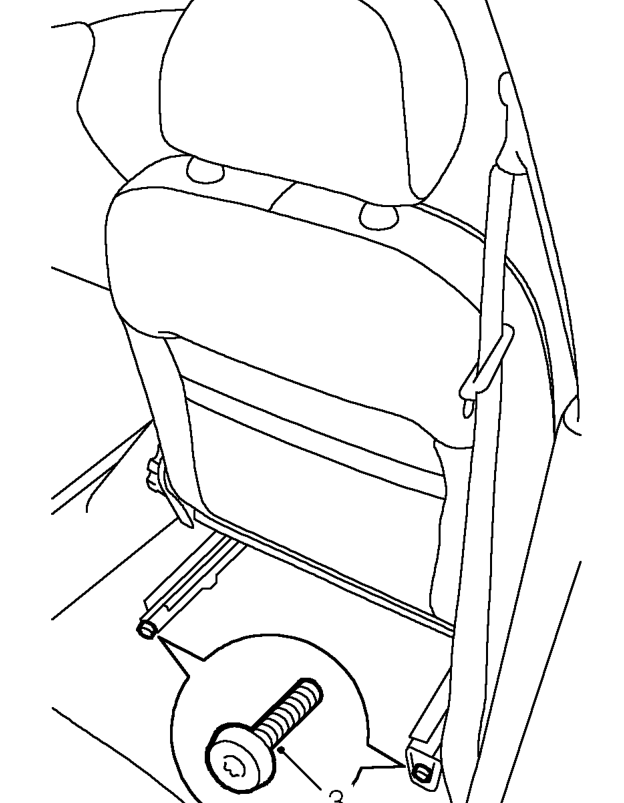

  2. Move seat fully forward.
Front seat – Move seat fully forward.

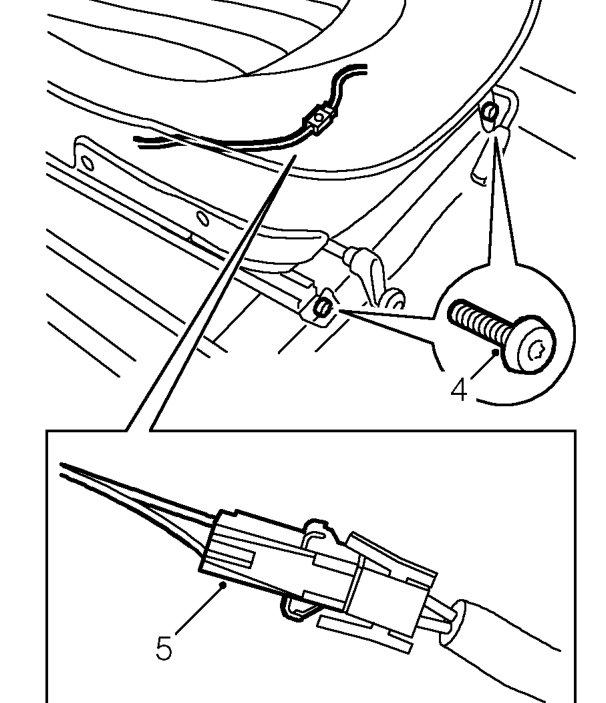

  1. Remove 2 bolts securing rear of runners.
Front seat – Remove 2 bolts securing rear of runners.
  1. Move seat fully rearwards and remove 2 bolts securing front of runners.
  2. Move seat aside and disconnect SRS pre-tensioner multiplug.
  3. Remove seat.

Refit

  1. Position seat to vehicle and connect pre-tensioner multiplug.
  2. Fit bolts securing front of runners to floor and tighten to 34 Nm.
  3. Move seat fully forwards.
  4. Fit bolts securing rear of runners to floor and tighten to 34 Nm.
  5. Connect battery earth lead.
