LUMBAR SUPPORT MECHANISM

Service repair no - 78.60.07

Remove

Lumbar support mechanism – Service repair no - 78.60.07

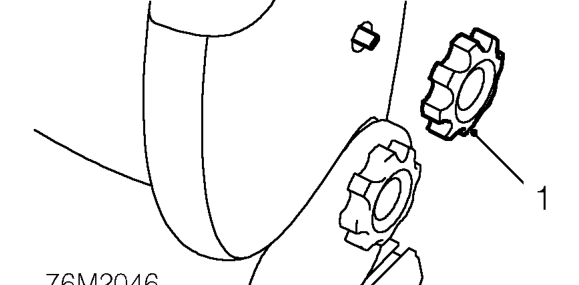

  1. Remove lumbar support adjustment wheel.
Lumbar support mechanism – Remove lumbar support adjustment wheel.

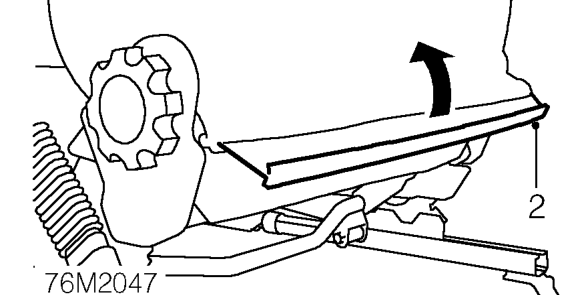

  1. Release seat squab retainer.
  2. Pull seat squab cover upwards to gain access to lumbar mechanism.
Lumbar support mechanism – Pull seat squab cover upwards to gain access to lumbar mechanism.

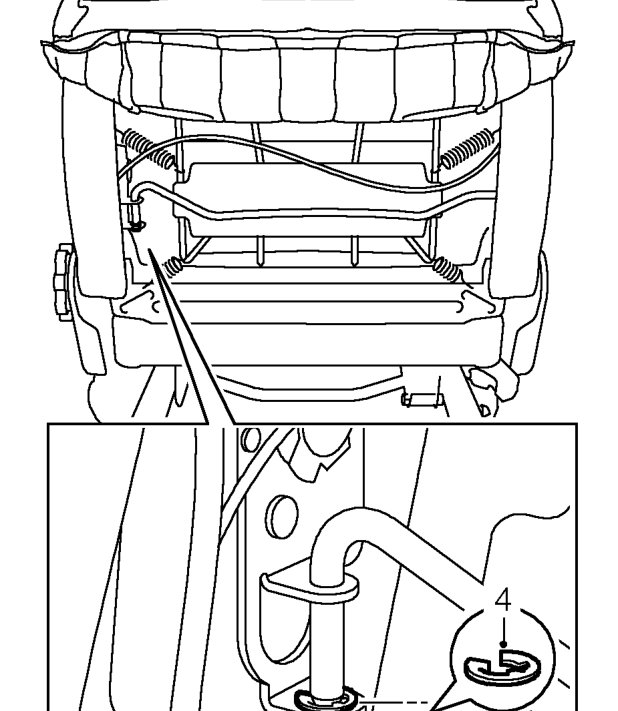

  1. Remove 2 spring clips securing lumber bar to mechanism.
