Rover 200 Workshop Manual (1995-1999)27 · Body
27 · Body & interior

Seat height adjustment handle

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Seats and seat belts › Seat height adjustment handle
BodySeat height adjustment handle

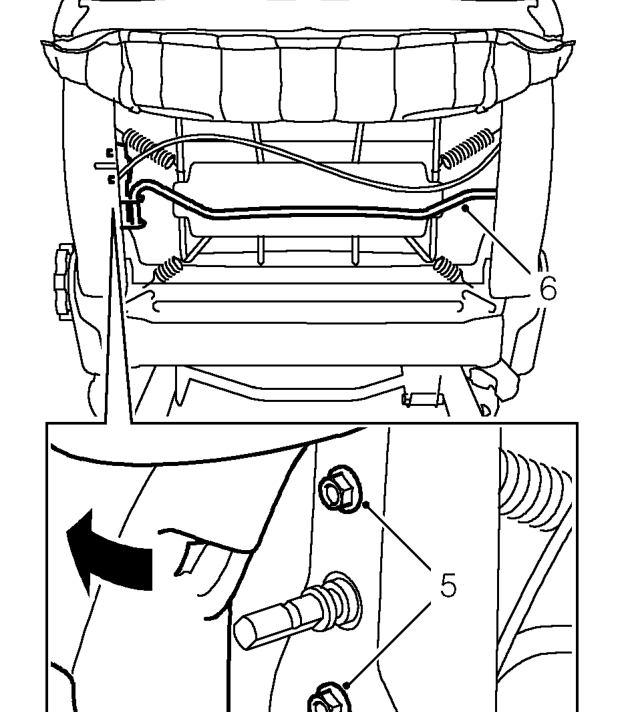

Diagram
  1. Pull squab cushion aside to gain access to 2 bolts securing mechanism to frame and remove bolts.
  2. Release bar from seat frame and remove mechanism and bar.

Refit

  1. Locate bar in seat frame and position mechanism and bar assembly.
  2. Fit bolts securing mechanism to frame and tighten to10 Nm.
  3. Fit spring clips securing bar to mechanism.
  4. Pull squab cover back into position and secure retainer.
  5. Fit Lumbar support adjustment wheel.

SEAT HEIGHT ADJUSTMENT HANDLE

Service repair no - 78.80.07

Remove

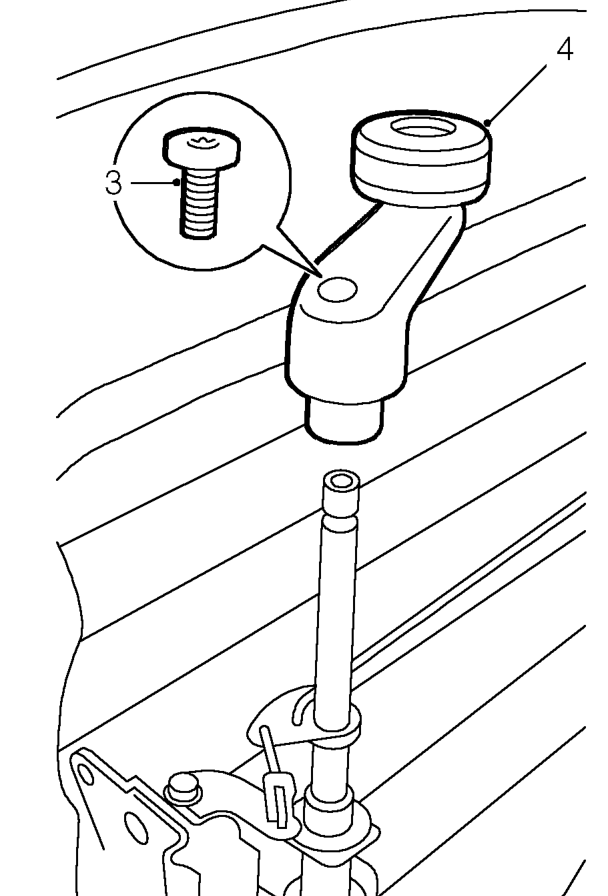

Seat height adjustment handle – Service repair no - 78.80.07
  1. Remove screw securing handle to height adjustment mechanism.
  2. Remove height adjustment handle.

Refit

  1. Fit handle to mechanism and secure with screw.
