Workshop Manuals Factory service & repair Rover
Rover 200 Workshop Manual (1995-1999)27 · Body
27 · Body & interior

Rear seat belt - centre

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Seats and seat belts › Rear seat belt - centre
BodyRear seat belt - centre · page 1 of 2

Refit

  1. Fit seat belt reel to squab support panel and fit locating bolt. DO NOT tighten.
  2. Fit Torx screw securing reel to squab support panel and tighten to 50 Nm.
  3. Tighten locating bolt to 10 Nm.
  4. Fit Torx screw securing seat belt to floor and tighten to 50 Nm.
  5. Position seat belt stalk to floor and tighten Torx screw to 50 Nm.
  6. Fit rear quarter lower trim casing. See Interior trim components.

REAR SEAT BELT - CENTRE

Service repair no - 76.73.20

Remove

  1. Remove rear seat cushion. See this section.

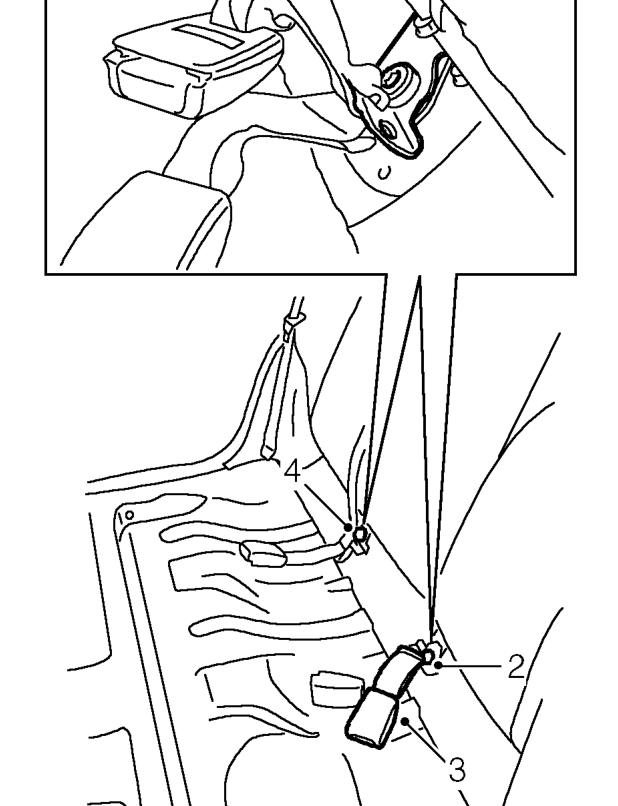

Rear seat belt - centre – Remove rear seat cushion. See this section.
  1. Remove Torx screw securing seat belt stalk to body.
  2. Remove seat belt stalk.
  3. Remove Torx screw securing seat belt to body.
  4. Remove parcel shelf. See Interior trim components.
