Rover 200 Workshop Manual (1995-1999)27 · Body
27 · Body & interior

Both latches:

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Seats and seat belts › Both latches:
BodyBoth latches:

Both latches:

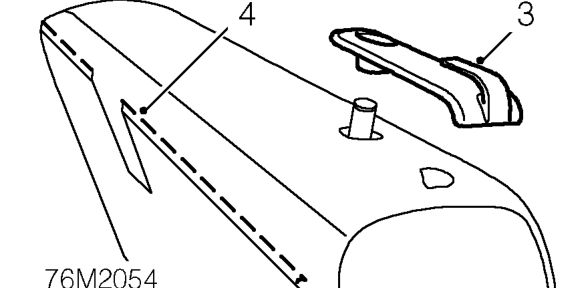

Remove escutcheon from top of squab cover.

Both latches: – Remove escutcheon from top of squab cover.
  1. Release retainer securing squab cover to rear carpet.
  2. Fold rear seat slightly forward and place block of wood between squab and squab support panel.

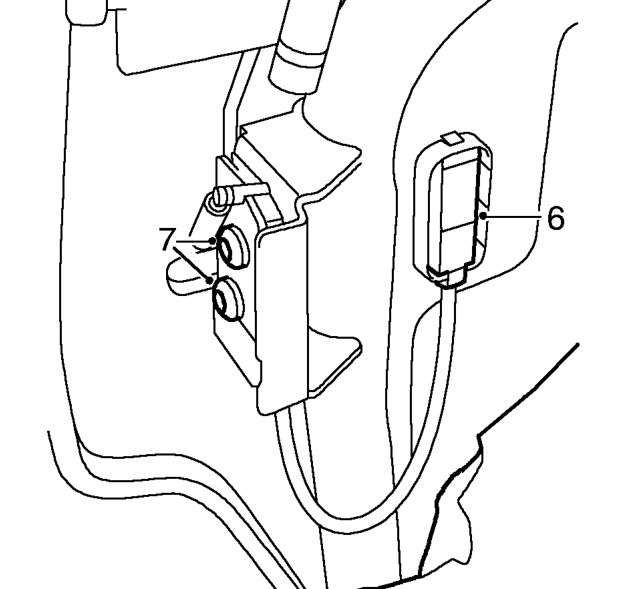

  3. Move squab cover and cushion aside to gain access to latch mechanism.
Both latches: – Move squab cover and cushion aside to gain access to latch mechanism.
  1. Remove squab release handle from rear squab panel.

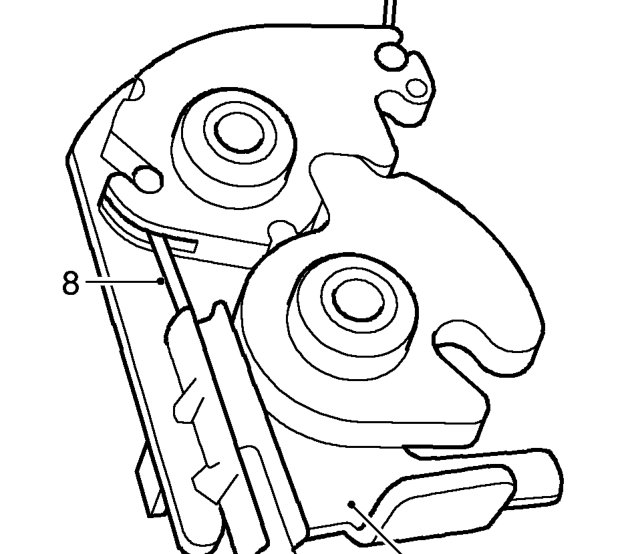

  2. Remove 2 Torx screws securing latch to seat frame.
Both latches: – Remove 2 Torx screws securing latch to seat frame.
  1. Release cables from latch.
  2. Remove latch assembly.

Refit

  1. Position latch assembly to seat frame and connect cable.
  2. Fit and tighten Torx screws securing latch to seat frame.
  3. Secure squab release handle to rear squab panel.
  4. Reposition squab cushion and cover to frame and secure retainer.
  5. Fit escutcheon to top of seat squab.
  6. Reposition rear seat.

RH latch only:

  1. Position seat belt reel cover to seat and secure with screws.
