Rover 200 Body Repair Manual (1995-1999)05 · Body
05 · Body & interior

Rear seat belt - side - 5 door

Make
Rover
Model
200 Body Repair Manual
Year
1995–1999
Section
Seats and seat belts › Rear seat belt - side - 5 door
BodyRear seat belt - side - 5 door

REAR SEAT BELT - SIDE - 5 DOOR

Service repair no - 76.73.23

Remove

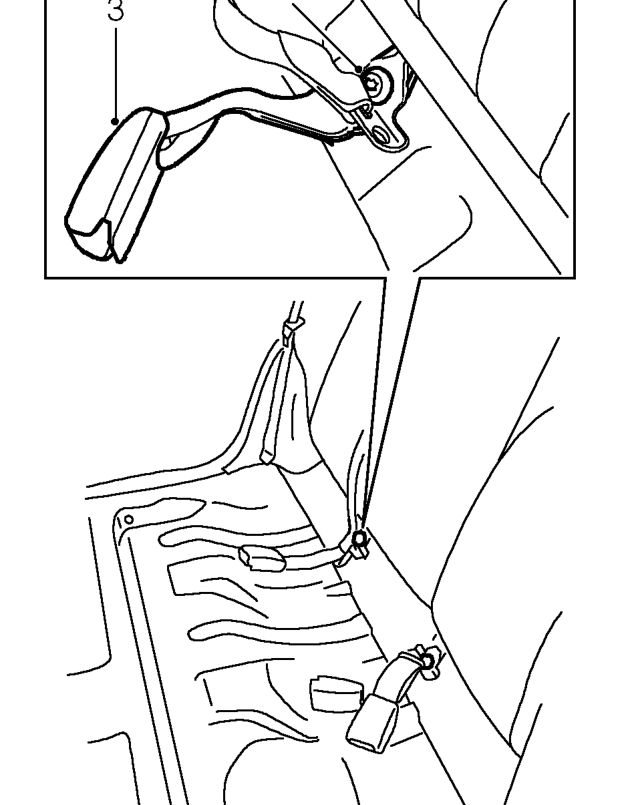

  1. Remove rear quarter lower trim casing. See Interior trim components.
Rear seat belt - side - 5 door – Remove rear quarter lower trim casing. See Interior trim components.

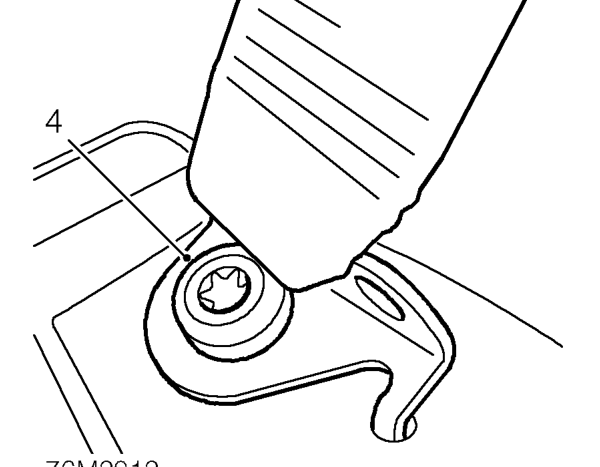

  1. Remove Torx screw securing seat belt stalk to body.
  2. Remove seat belt stalk.
Rear seat belt - side - 5 door – Remove seat belt stalk.
  1. Remove Torx screw securing seat belt to floor.
Rear seat belt - side - 5 door – Remove Torx screw securing seat belt to floor.

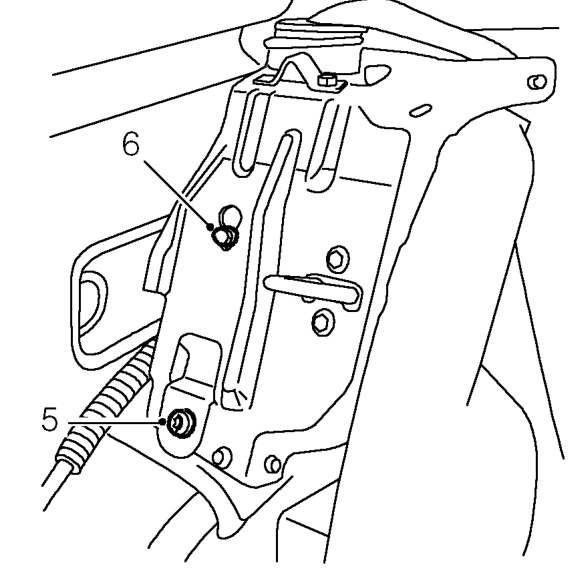

  1. Remove Torx screw securing seat belt reel to rear squab support panel.
  2. Remove seat belt reel locating bolt.
  3. Remove seat belt.
