Rover 200 Body Repair Manual (1995-1999)05 · Body
05 · Body & interior

Rear squab latch

Make
Rover
Model
200 Body Repair Manual
Year
1995–1999
Section
Seats and seat belts › Rear squab latch
BodyRear squab latch
Diagram

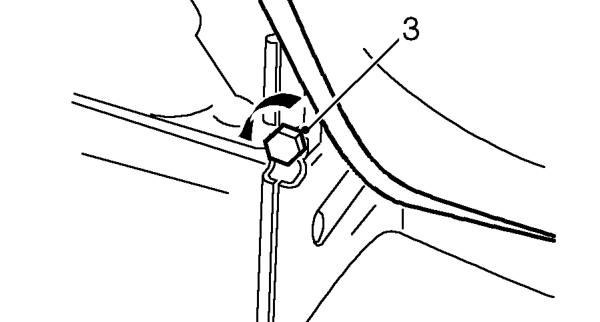

  1. Turn hinge clamping bolt anti-clockwise until hinge pin can be removed from hinge.
  2. Release outer hinge pin and remove seat squab.

Refit

  1. Position squab outer hinge pin.
  2. Fit inner pin to centre hinge.
  3. Fully tighten centre hinge clamping bolt.
  4. Fit seat belt lower anchorage bolt and tighten to 50 Nm.
  5. Fit rear seat cushion. See this section.

REAR SQUAB LATCH

Service repair no - 78.80.16

Remove

  1. Open tailgate.

RH latch only:

Rh latch only: – Open tailgate.

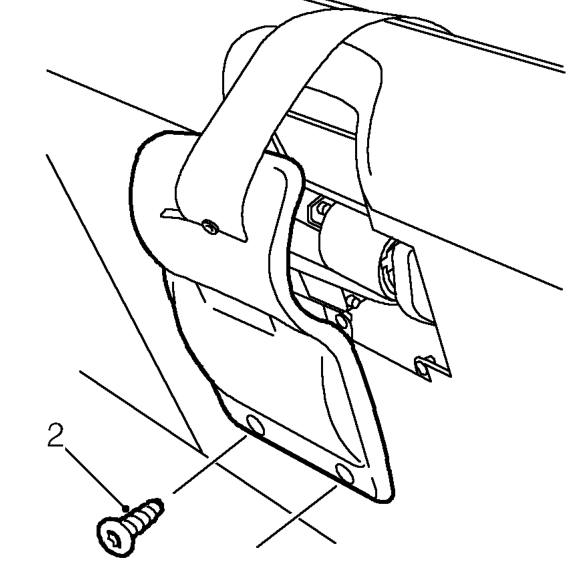

  1. Remove 2 screws securing centre seat belt reel cover and move cover aside.
