Rover 200 Body Repair Manual (1995-1999)05 · Body
05 · Body & interior

Inner valance - front cushion

Make
Rover
Model
200 Body Repair Manual
Year
1995–1999
Section
Seats and seat belts › Inner valance - front cushion
BodyInner valance - front cushion

Refit

  1. Fit lower valance to seat and secure with screws.
  2. Fit escutcheons to lower valance.
  3. Fit upper valance to seat and secure clips.
  4. Fit front seat. See this section.

INNER VALANCE - FRONT CUSHION

Service repair no - 78.30.46

Remove

  1. Remove front seat. See this section.

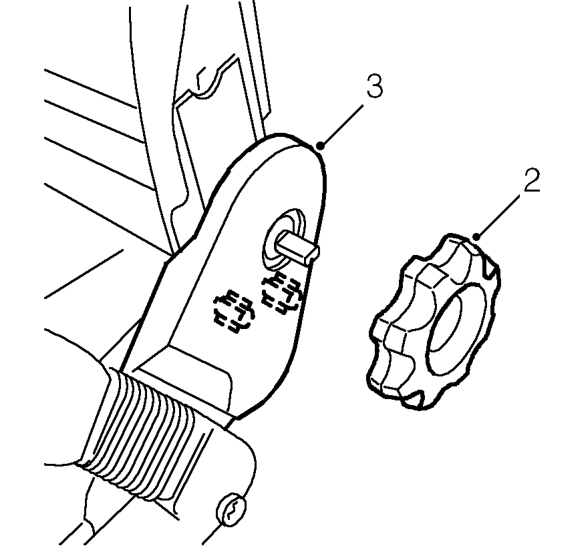

Inner valance - front cushion – Remove front seat. See this section.
  1. Release adjustment wheel from seat.
  2. Release valance from 2 clips and remove from seat.

Refit

  1. Fit valance to seat and secure with clips.
  2. Fit adjustment wheel to seat.
  3. Fit front seat. See this section.
