Seats and seat belts › Front seat and squab frame
BodyFront seat and squab frame · page 1 of 2

Refit

  1. Position squab cover, fit head restraint escutcheons and secure with clips.
  2. Pull cover to position and secure front with new hog rings.
  3. Pass cover hooks through cushion and secure to squab frame.
  4. Position cover and secure rear with new hog rings.
  5. Pass cover hooks under base of squab and secure to frame.
  6. Secure lower retainer to frame rear bar.
  7. Fit head restraint.
  8. Fit front seat. See this section.

FRONT SEAT AND SQUAB FRAME

Service repair no - 78.30.18

Remove

  1. Remove front squab cover. See this section.

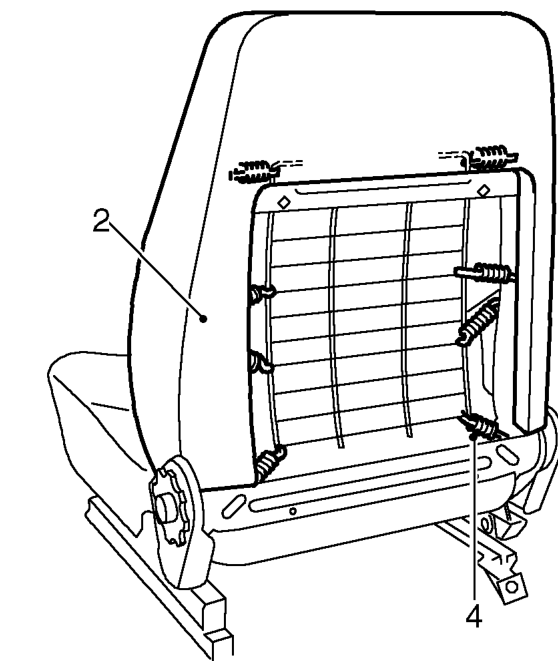

Front seat and squab frame – Remove front squab cover. See this section.
  1. Remove front squab pad.
  2. Release spring clips and remove head restraint escutcheons from squab frame.
  3. Release 8 springs securing squab suspension to frame and remove suspension.
