BodyRear seat cushion

REAR SEAT CUSHION

Service repair no - 78.10.17.99

Remove

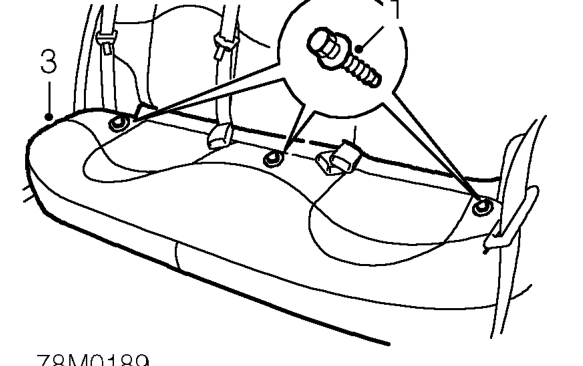

Rear seat cushion – Service repair no - 78.10.17.99
  1. Remove 3 bolts securing seat cushion to body.
  2. Pull seat cushion forward and release from body.
  3. Remove seat cushion from vehicle.

Refit

  1. Position seat cushion in vehicle and locate tongues along forward edge.
  2. Fit bolts securing cushion to floor and tighten to 10 Nm.

REAR SEAT SQUAB

Service repair no - 78.10.58.99

Remove

  1. Remove rear seat cushion. See this section.

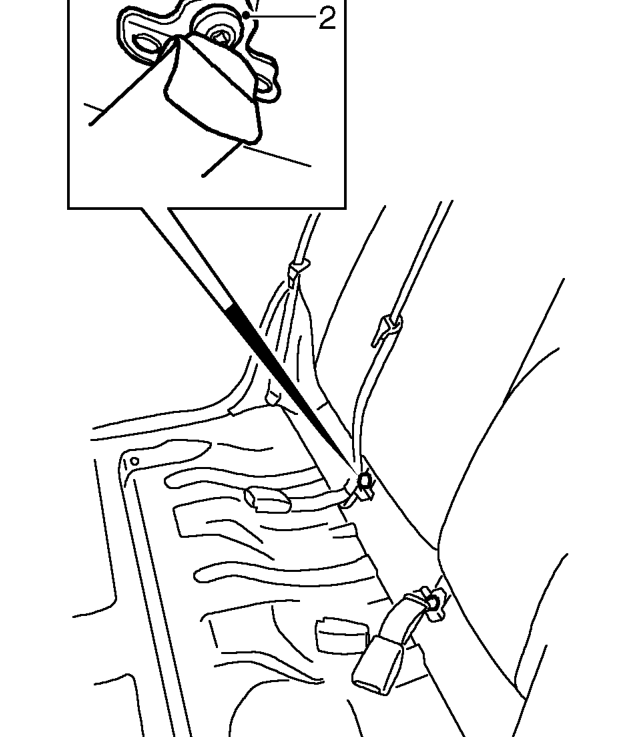

Rear seat squab – Remove rear seat cushion. See this section.
  1. Remove bolt from lower seat belt anchorage.
