REAR SEAT BELT - SIDE - 3 DOOR

Service repair no - 76.73.23

Remove

  1. Remove rear quarter lower trim casing. See Interior trim components.

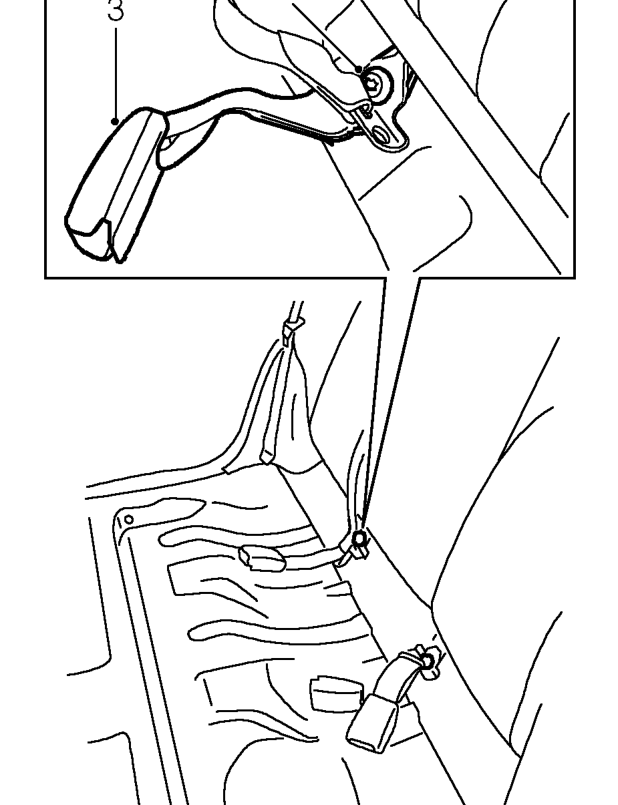

Rear seat belt - side - 3 door – Remove rear quarter lower trim casing. See Interior trim components.
  1. Remove Torx screw securing seat belt stalk to body.
  2. Remove seat belt stalk.

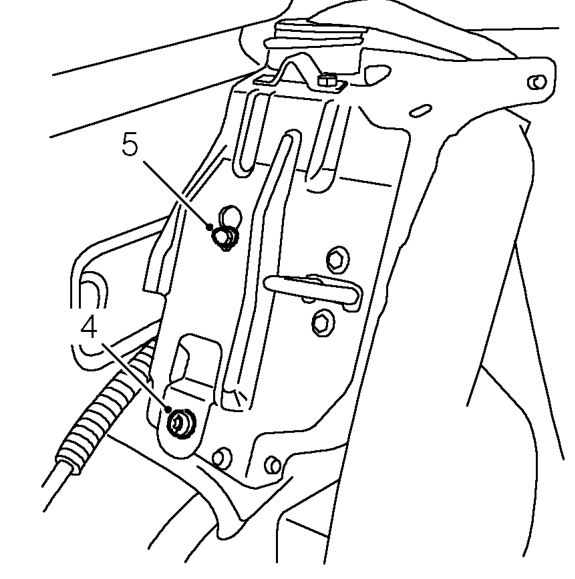

Rear seat belt - side - 3 door – Remove seat belt stalk.
  1. Remove Torx screw securing seat belt reel to rear squab support panel.
  2. Remove seat belt reel locating bolt.
  3. Remove seat belt.

Refit

  1. Fit seat belt reel to squab support panel and fit locating bolt. DO NOT tighten.
  2. Fit Torx screw securing reel to squab support panel and tighten to 50 Nm.
  3. Tighten locating bolt to 10 Nm.
  4. Position seat belt stalk to floor and tighten Torx screw to 50 Nm.
  5. Fit rear quarter lower trim casing. See Interior trim components.
