CATALYTIC CONVERTER - ’K8’

Service repair no - 17.50.01

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

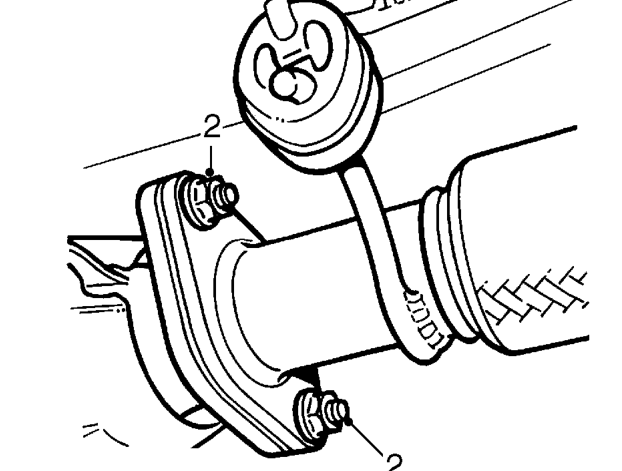

Catalytic converter - ’k8’ – Raise front of vehicle.
  1. Remove 2 nuts securing catalytic converter to front pipe.

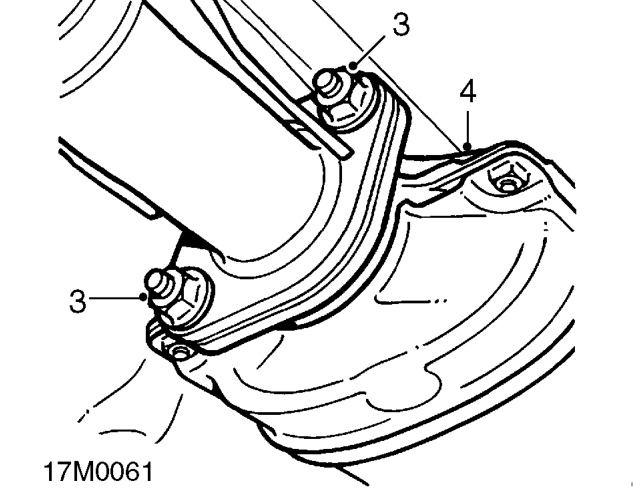

Catalytic converter - ’k8’ – Remove 2 nuts securing catalytic converter to front pipe.
  1. Remove 2 nuts securing catalytic converter to intermediate pipe.
  2. Disconnect catalytic converter from intermediate pipe. Remove catalytic converter from front pipe.
  3. Remove and discard gaskets.

CAUTION: Catalytic converters are manufactured from ceramic material which is very fragile, avoid heavy impacts on converter casing.
