CATALYTIC CONVERTER HEAT SHIELD - ’K8’ AND ’K16’

Service repair no - 17.50.05

Remove

  1. Raise vehicle on 4 post ramp.
Catalytic converter heat shield - ’k8’ and ’k16’ – Raise vehicle on 4 post ramp.
  1. Remove 4 bolts securing catalytic converter heat shield to transmission tunnel.
  2. Remove catalytic converter heat shield.

Refit

  1. Fit catalytic converter heat shield.
  2. Fit bolts securing heat shield to transmission tunnel and tighten to 6 Nm.
  3. Lower vehicle.

CATALYTIC CONVERTER HEAT SHIELD - ’K16 1.8 & K16 WITH VVC’

Service repair no - 17.50.05

Remove

  1. Raise vehicle on 4 post ramp.
Catalytic converter heat shield - ’k16 1.8 & k16 with vvc’ – Raise vehicle on 4 post ramp.
  1. Remove bolt and disconnect gear change steady bar from gearbox, collect 2 washers.
  2. Remove clip securing selector rod roll pin.
  3. Using a suitable punch, drive out roll pin securing selector rod selector shaft.
  4. Release selector rod from selector shaft.

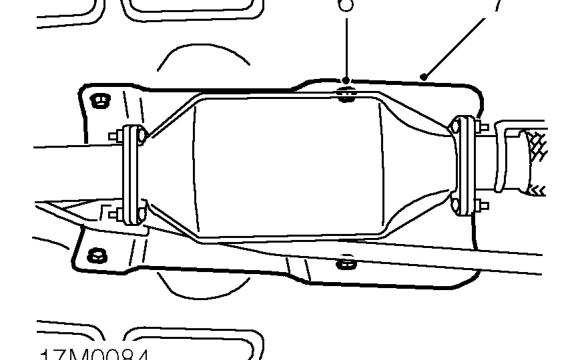

Catalytic converter heat shield - ’k16 1.8 & k16 with vvc’ – Release selector rod from selector shaft.
  1. Remove 4 bolts securing catalytic converter heat shield to transmission tunnel.
  2. Remove catalytic converter heat shield.
