Emission controlCrankcase pressure limiter valve - ’l’ series

CRANKCASE PRESSURE LIMITER VALVE - ’L’ SERIES

Service repair no - 17.10.25

Remove

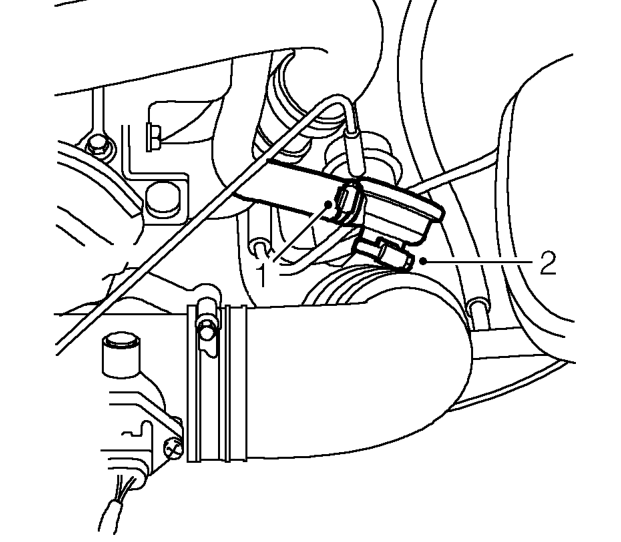

Crankcase pressure limiter valve - ’l’ series – Service repair no - 17.10.25
  1. Loosen clip and disconnect engine breather hose from valve.
  2. Loosen clip and remove valve from air intake pipe.

Refit

  1. Fit valve to air intake pipe and tighten clip.
  2. Connect engine breather hose to valve and tighten clip.

EVAPORATIVE EMISSION CANISTER - ’K’ SERIES

Service repair no - 17.15.13

Remove

  1. Disconnect battery earth lead.

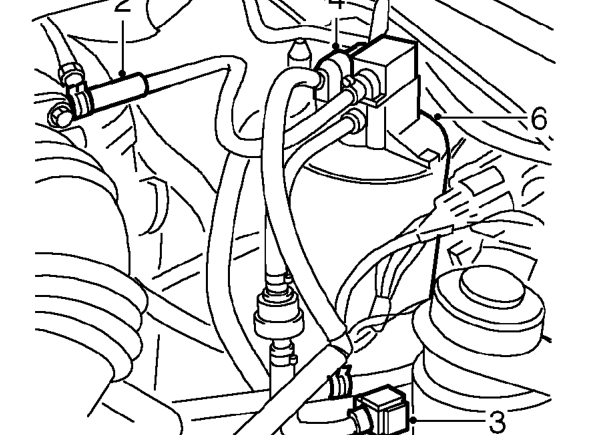

Evaporative emission canister - ’k’ series – Disconnect battery earth lead.
  1. Release clip and disconnect hose from inlet manifold.
  2. Disconnect hose from fuel tank vent pipe.
  3. Disconnect multiplug from purge valve.
  4. Release evaporative emission canister from mounting bracket.
  5. Remove evaporative emission canister.

Refit

  1. Fit evaporative emission canister to mounting bracket.
  2. Locate evaporative emission canister breather hose in subframe.
  3. Connect hose to fuel tank vent pipe.
  4. Connect hose to inlet manifold and secure with clip.
  5. Connect multiplug to purge valve.
  6. Connect battery earth lead.
