Exhaust gas recirculation (EGR) valve - ’l’ series

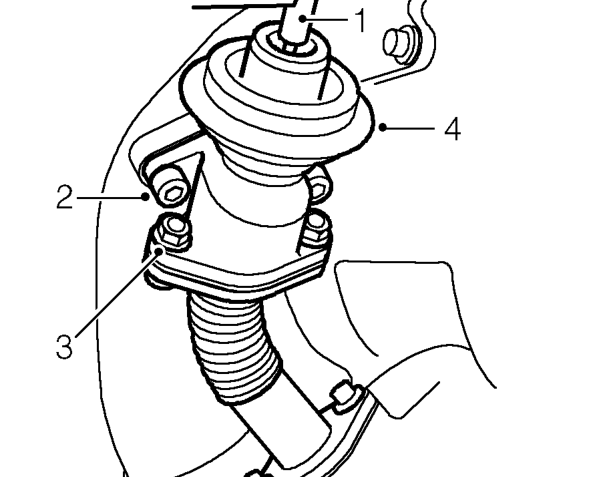

EXHAUST GAS RECIRCULATION (EGR) VALVE - ’L’ SERIES

Service repair no - 17.45.01

Remove

1. Disconnect vacuum pipe from valve.
2. Remove 2 Allen bolts securing valve to inlet manifold and collect gasket.
3. Remove 2 bolts securing valve to exhaust manifold pipe and collect nuts and gasket.
4. Remove EGR valve.

Refit

1. Position gasket to exhaust manifold pipe and fit EGR valve. Fit nuts and bolts and tighten to 25 Nm.
2. Position gasket between valve and inlet manifold and tighten Allen bolts to 25 Nm.
3. Connect vacuum pipe to EGR valve.

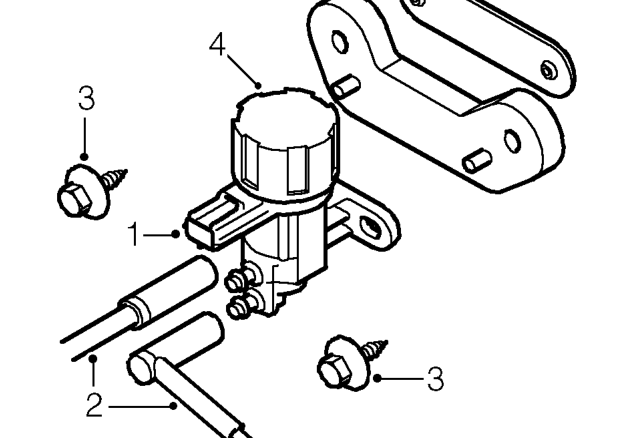

EXHAUST GAS RECIRCULATION (EGR) SOLENOID - ’L’ SERIES

Service repair no - 17.45.04

Remove

1. Disconnect multiplug from EGR solenoid.
2. Disconnect 2 vacuum pipes from EGR solenoid.
3. Remove 2 bolts securing EGR solenoid to bracket.
4. Remove EGR solenoid.

Refit

1. Fit EGR solenoid to bracket and secure with bolts.
2. Connect vacuum pipes to EGR solenoid.
3. Connect multiplug to EGR solenoid.
